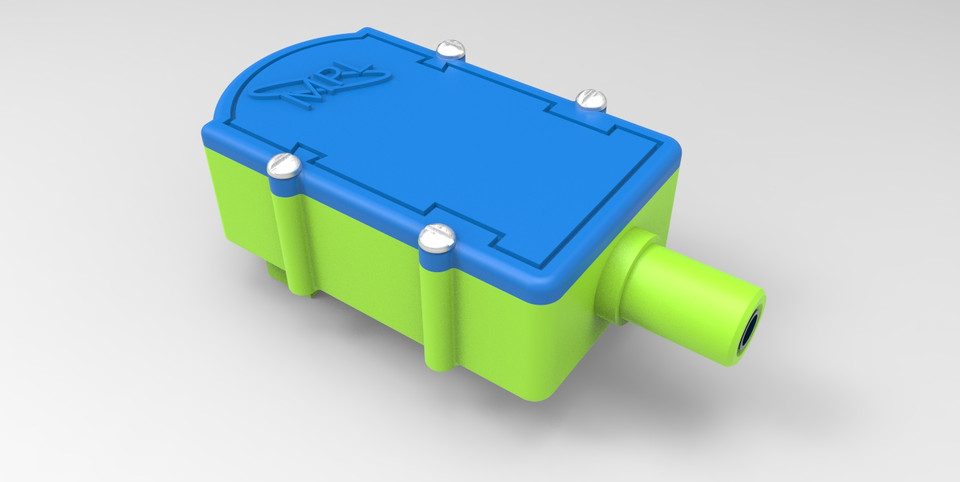

Sense the Pressure 2
grabcad
A pressure sensor utilizes a bellow, resistor strip, and potentiometer to measure pressure changes. As pressure rises, the bellow expands and moves the resistor strip linearly. The potentiometer then reads the resistance, which is converted into pressure data by a chip for accurate readings.
Download Model from grabcad
With this file you will be able to print Sense the Pressure 2 with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on Sense the Pressure 2.
