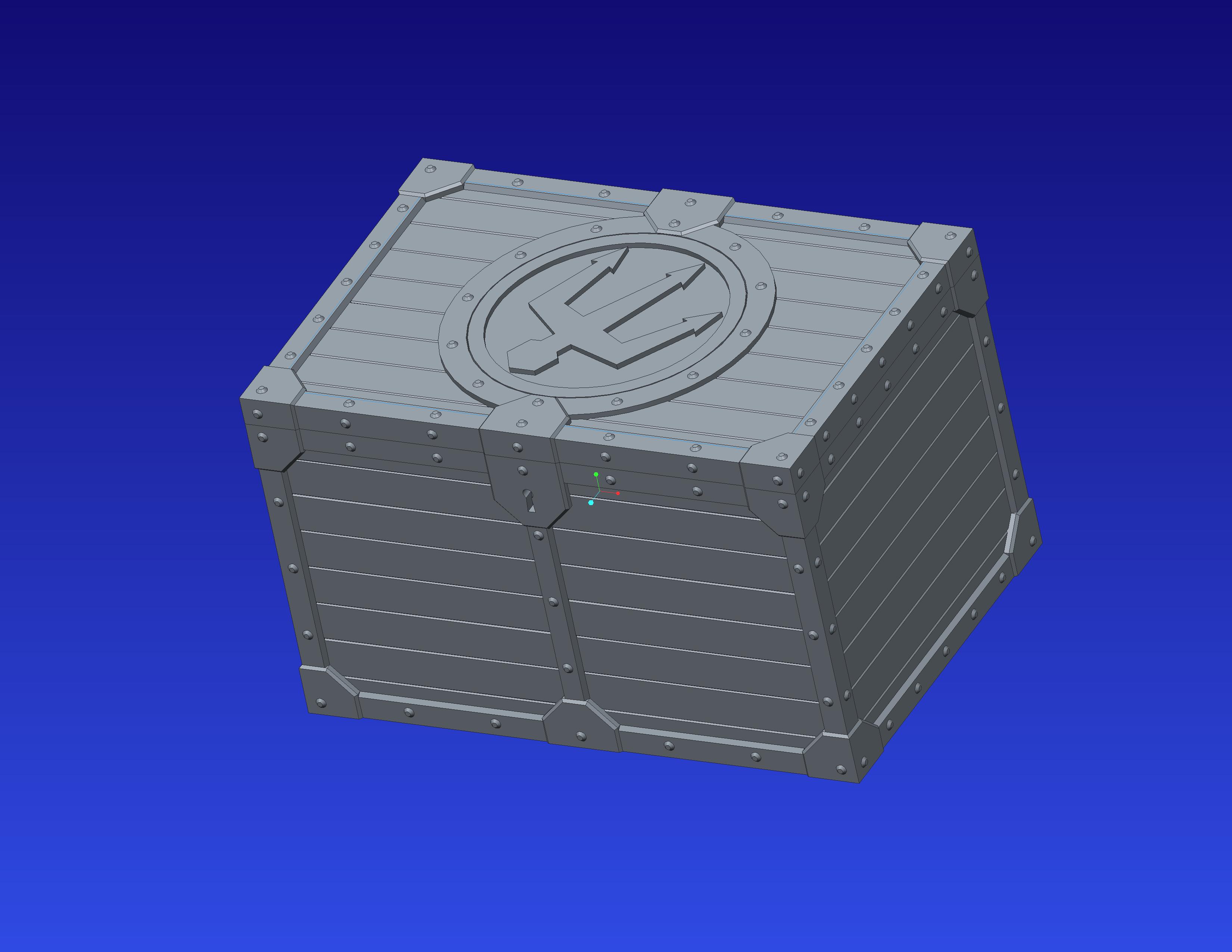

Secretly Locking Seafall Treasure Chest

prusaprinters

<p>My gaming group got Seafall with the intent to play it, and I was looking at the terribly boring cardboard treasure chests that came with it, and I just felt the need to do something more fun, and although I originally planned to secure the lid with magnets, I got carried away and made it have a secret locking mechanism where you rotate the symbol on the top and it locks and unlocks.</p> <p>I've only finished one of the Seafall symbols so far as I've just finished the prototype build, but I've included a blank symbol part if you want to stick your own thing on it.</p> <p>Both brimmed and unbrimmed parts included as the PLA I was printing was lifting up at the corners a little. The symbol will probably need a little sanding around the edges so it fits just right.</p> <p>Rotate so the bottom is down on all parts when printing... My cad program works 90 degrees to everything else...</p> <p>Needs about 4 spots of glue to attach the lid parts together and another to glue the logo disc on.</p> <p>Internal dimensions 100mm x 65mm x 52mm, does not fit back in the seafall box. If you want a shorter version that does zzzzzane has modified the body to be shorter. <a href="https://www.thingiverse.com/thing:2055008">http://www.thingiverse.com/thing:2055008</a></p> <h3>Print instructions</h3><h3>Category: Containers Revision Log</h3> <p>2016-12-02 Updated P02 to increase tolerance on sockets and added a chamfer around the inside of the ring to make assembly need less work.</p> <p>2016-12-05 Added unicorn and castle logos to p02, adjusted p02 and p04 for hopefully easier assembly. (also rotated everything so up is up)</p> <p>2016-12-11 Added remaining seafall logos.</p>
