Screw drive tank. Archimedes Explorer

prusaprinters

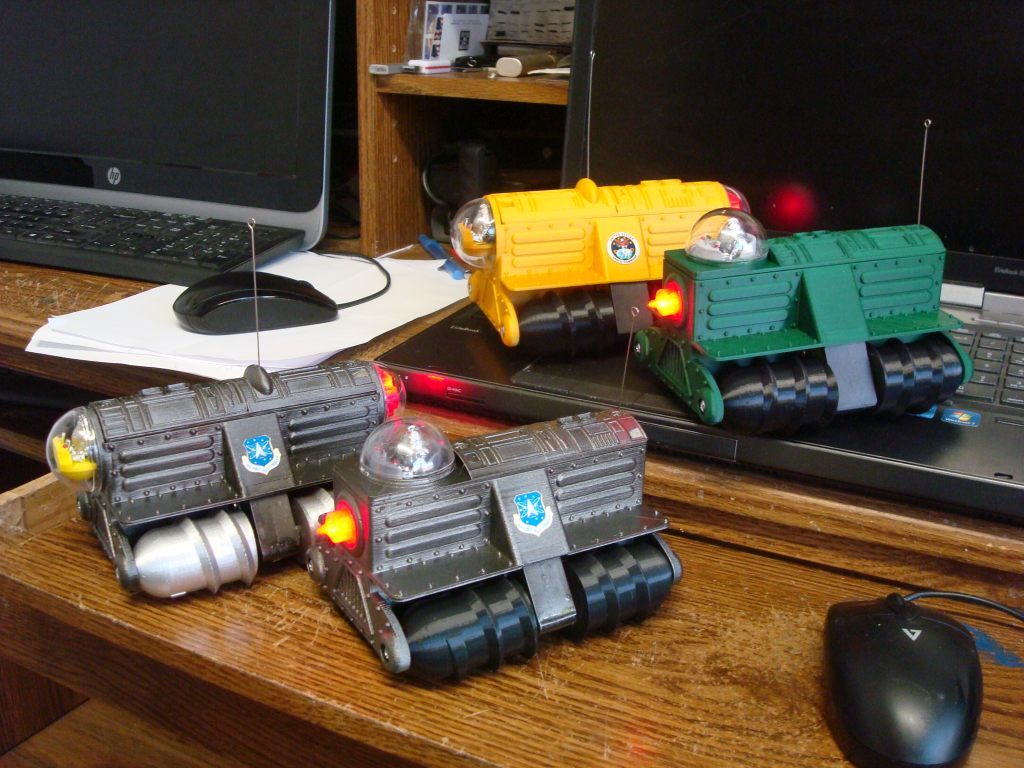

<p>You tube video of the screw drive tanks in action indoors on the carpet. <a href="https://youtu.be/BrmW2oacwbM">https://youtu.be/BrmW2oacwbM</a></p> <p>Video of the tanks in the snow. <a href="https://youtu.be/7Ska6xW8SLM">https://youtu.be/7Ska6xW8SLM</a></p> <p>The screw drive units are a remix of thing 2317805</p> <p>build pictures and info can be found on Alphadrome web site in the 3d printed section or this link "untill the site moves things around".</p> <p><a href="http://alphadrome.net/forums/topic/23063-archimedes-explorer-screw-drive-3d-printed-robot-tank/">http://alphadrome.net/forums/topic/23063-archimedes-explorer-screw-drive-3d-printed-robot-tank/</a></p> <p>I use standard TT gear motors to drive the screw units. I also used a RC toy from Walmart to control the gearmotors. The battery box area will hold a 4 AA battery "dual in line" pack.</p> <p>I did two different bodys for my build but I think if I give you just the base for the body then you can have the fun of designing your own body style.</p> <p>Print 2 of the screw drive A parts and 2 of the screw drive B parts. Us e the part A parts for the left side and the B for the right side lets say, it does not matter as long as the Part A screw drive parts are on the same side.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Prusa</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>I3 MK3S</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div> <p><strong>Resolution:</strong></p> <p>0.2</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>20%</p></div> <p><strong>Filament:</strong> any PLA any</p> </p></p></p> Category: Mechanical Toys
