Sapphire S Microswiss Hotend Mount

prusaprinters

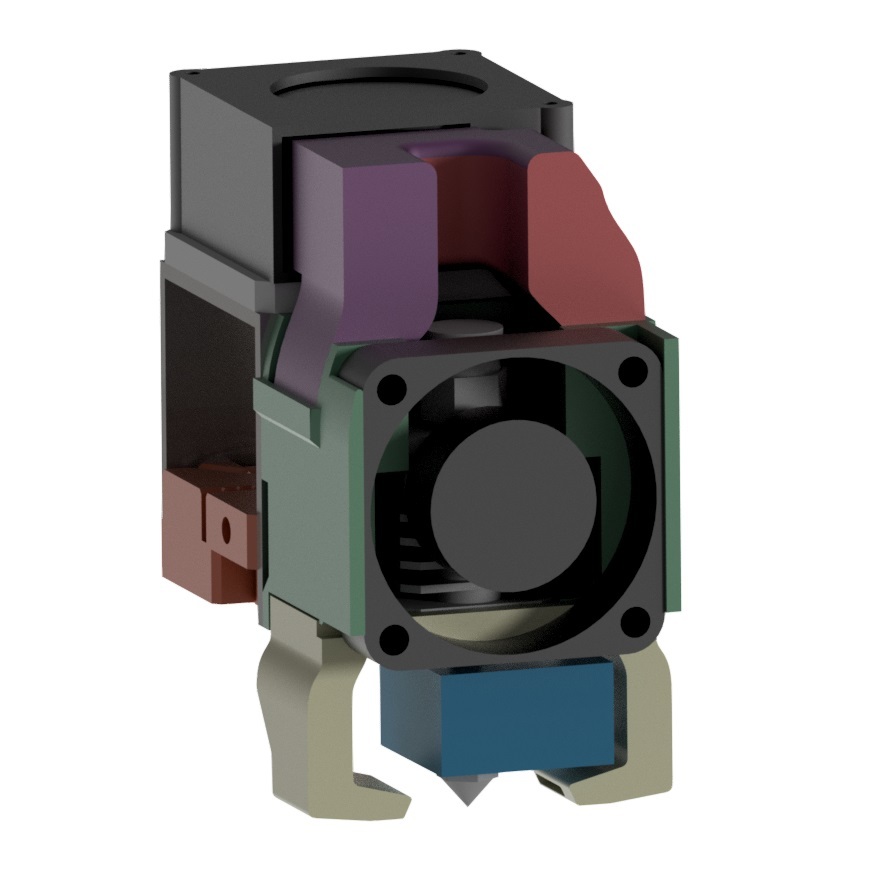

<p>Mount for attaching 29mm Microswiss hotend to Sapphire S. Uses 40x20 radial fan, integrated airduct, lower and upper parts snap in place.</p> <h3>Print Settings</h3> <p><strong>Filament:</strong> any at least PETG</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>see pictures for suggested support structures.</p></div> Post-Printing ============= <p><strong>Assembly</strong></p> <div><p>Screw main mount to metal bracket. (2x M4x5mm)<br/> Screw in hot end. (2x M3x20mm) <p>Screw fan mount to metal bracket. (reuse original screws)</p> <p>Put in place radial fan.</p> <p>Snap in place upper air duct.</p> <p>Screw in radial fan. (2x M2x15mm, M3 will work too but required to drill bigger holes in printed part)</p> <p>Snap in place (sliding in from front) lower air duct.</p> <p>Hotend fan attaches push in place, optionally can be mounted with upper mounting holes.</p> </p></div> Category: 3D Printer Accessories
