Sapphire-S belt aligner

prusaprinters

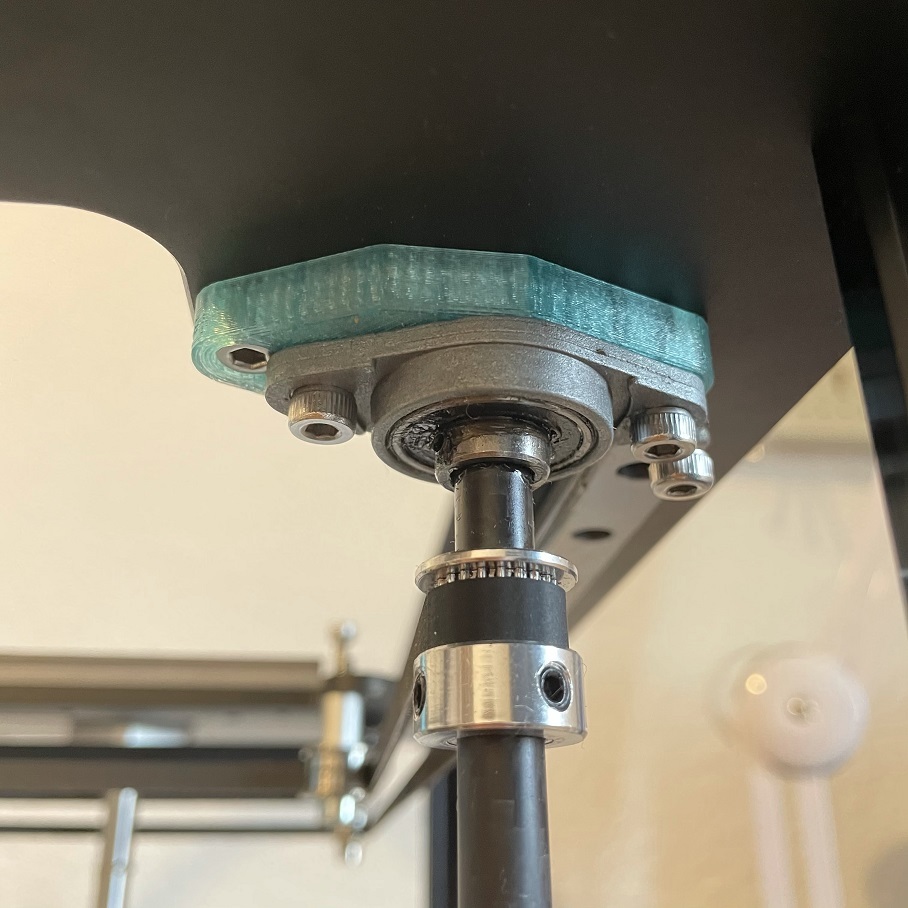

<p>By using these parts in combination with F624-ZZ bearings you can align your belts propperly.</p> <p>Credit goes to Jean-Luc Tavelli from the twotrees 3D printer facebook group for coming up with the idea and initial design.</p> <h3>Post-Printing</h3> <p><strong>Assembly</strong></p> <div><p>Put captive M3/M4 nuts in place. Make sure to press nuts all the way into the part, otherwise the original screws won't be long enough.</p> Use original screws to screw plate to motor, use M3x10mm to screw motor with plate to printer base <p>Use M4x5mm to screw upper part to top plate, use original screws to screw bearing to upper part.</p> </div> Category: 3D Printer Parts
