Sapphire Pro Dragon Hotend Mount

prusaprinters

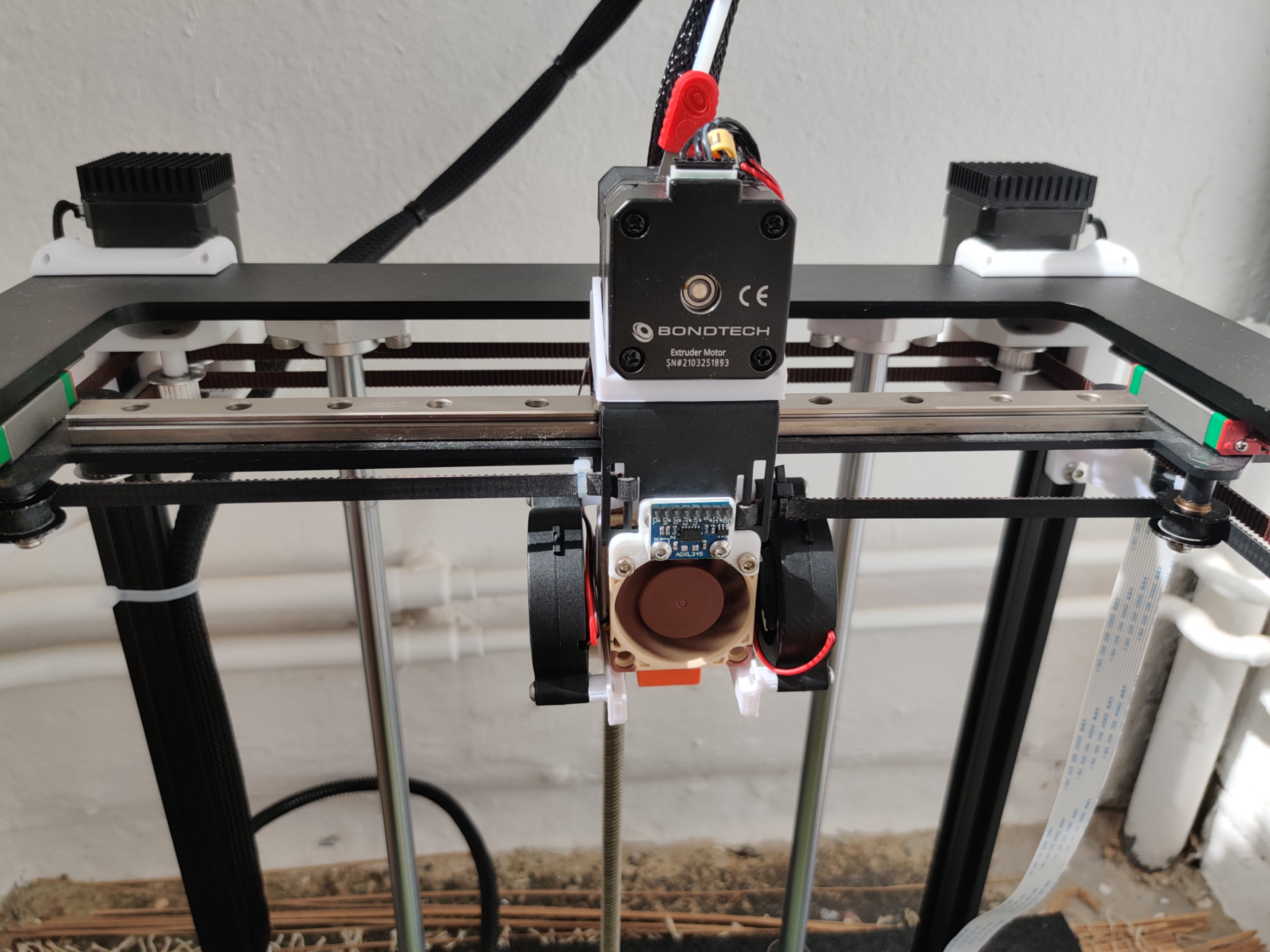

<p>Hello there,</p><p>This mount is a remix for the TwoTrees Sapphire Pro with a Dragon Hotend. The hotend is mounted rigid with screws, so one handed nozzle swaps should be possible. It uses 5010 radial fans, because my original 4010s were dramatically underpowered.</p><p>I know it's not the cleanest remix (I'm not the best at designing), but for me it works really nicely.</p><p>The fanducts are not really aerodynimcal approved, just made with my gut feeling and a bit of thinking.</p><p>The BL-Touch sticks out a little and I have a newer, but longer Z-screw, so I had to change the position of the endstop by 20mm. The offsets between the nozzle and the probe are x:0mm and y:22mm.</p><p>I really like threaded Inserts and M3 srews, so most of the mount is assembled with them.</p><p>I hope you like the remix!</p><p>Remixed from: https://www.thingiverse.com/thing:4680533</p><h3>Print Settings</h3><p><strong>Printer Brand:</strong></p><p>Creality</p><p><strong>Printer:&nbsp;</strong></p><p>Ender 3</p><p><strong>Rafts:</strong></p><p>No</p><p><strong>Supports:&nbsp;</strong></p><p>Yes</p><p><strong>Resolution:</strong></p><p>0.3mm layer height</p><p><strong>Infill:&nbsp;</strong></p><p>20%</p><p>&nbsp;</p><p>&nbsp;</p><p>&nbsp;</p><p>Category: 3D Printing</p>
