Sanchez 3in Canopy for Caddx Turtle with Cooling Ducts

prusaprinters

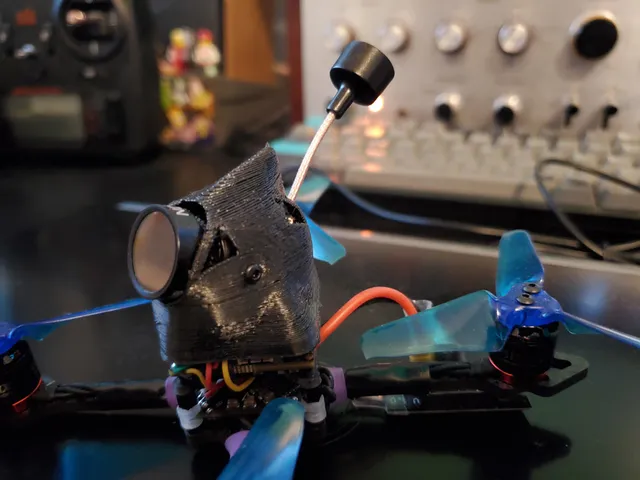

07/26/19 update: I've added a version that includes recesses for M2 nuts, to better hold the canopy on. I decided to make a version of this canopy with cooling ducts to let out some of the heat generated by the VTX and the camera's circuit board. It gets pretty hot in there and I think this will help quite a bit. I also enlarged the lens opening in width and height to allow for some air to enter in the front around the lens and also to allow a bit more space for an ND filter if you'd like to use one. My print was done at 0.3mm and you can tell by the pic that it's a bit rough looking with the large layer size. I wanted to print it fast and get it installed but it would definitely look nicer at 0.2mm Print Settings Printer Brand: Creality Printer: Ender 3 Rafts: No Supports: Yes Resolution: .3 Infill: 100% Filament: Priline TPU Black Notes: Supports printed touching buildplate with Support Line Width at 0.3mm, Support Z Distance at 0.2mm, Support Interface enabled, Support Interface Density at 30%. Category: R/C Vehicles
