Runout En-Coder-Cube - Ender 3 Mount Remix

prusaprinters

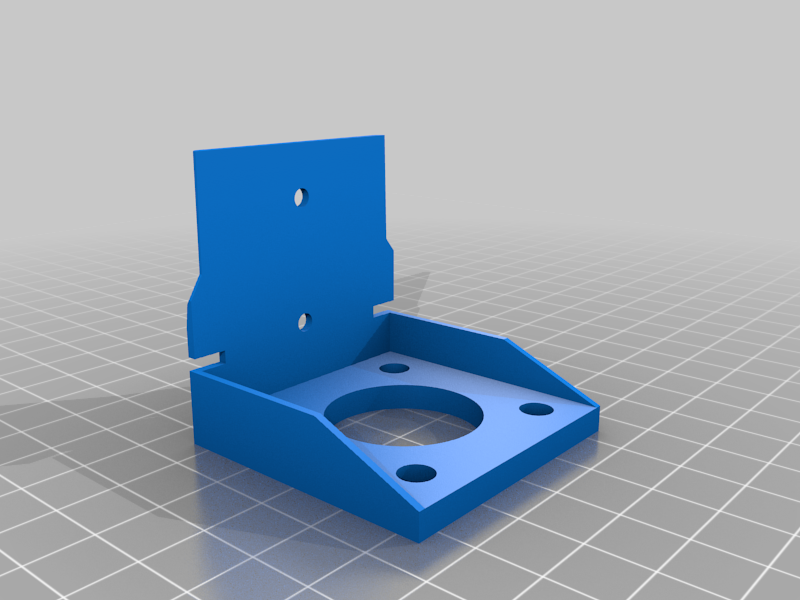

<p>I made this mount to attach the original design to the extruder mount on the Ender 3. I have upgraded my extruder and the mounting plate was free. It uses four M3 screws and nuts to secure the design to the printer, and the wires can be routed through the new mount.</p> <p>At the moment, I have this set up, and it works, but unfortunately, the device is in the same X position as the left Z lead screw bracket, and limits the upward travel (in my case to about 185 mm). Yesterday, I found another remix that mounts differently, and I plan on using it instead: <a href="https://www.thingiverse.com/thing:4910977">https://www.thingiverse.com/thing:4910977</a></p> <p>I posted this remix in case anyone has use for it.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Creality</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>Ender 3 Pro</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div> <p><strong>Resolution:</strong></p> <p>0.24 works well</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>15%</p></div> <p><strong>Filament:</strong> Shop Smart, Shop S-Mart PETG Ash Gray</p> </p></p></p> Category: 3D Printer Parts
