Robotic vacuum garage door v2.0

prusaprinters

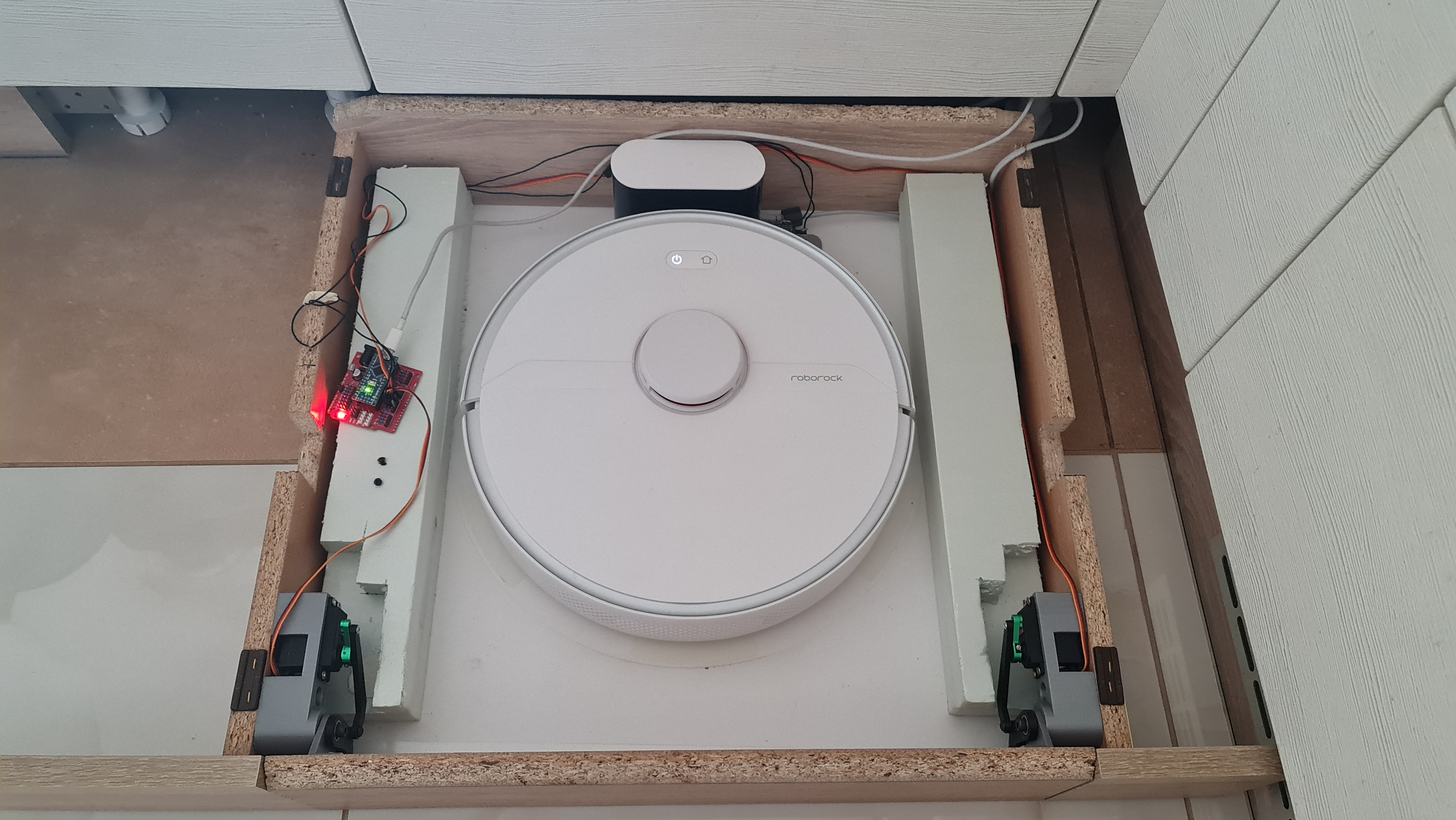

<p>this is my project for hidden vacuum cleaner v2.0 parts is needed print 2x one time mirrored.</p><figure class="media"><oembed url="https://youtu.be/gQ5_qGOtCdU"></oembed></figure><p>&nbsp;</p><p>I printed it from PET-G</p><p>&nbsp;</p><p>&nbsp;</p><p>you will need:</p><p>-2x servo MG996R</p><figure class="image image_resized" style="width:35.69%;"><img src="https://media.printables.com/media/prints/166520/rich_content/8fc5c1fb-39d4-4d0c-8070-fa8343a10584/0-02-05-2be4d57247203bf909614bbf5fea46bfff78afe736634b4f95fbbc1437ca0819_3506123714d23166.jpg#%7B%22uuid%22%3A%228fa98efa-0f52-4029-bae4-626d10f09953%22%2C%22w%22%3A480%2C%22h%22%3A271%7D"></figure><p>-Arduino nano</p><p>-Arduino prototiping shield</p><p>-1x endstop (better with longer leg)</p><figure class="image image-style-align-center image_resized" style="width:36.01%;"><img src="https://media.printables.com/media/prints/166520/rich_content/e48e76a7-0704-403e-a4cf-a2ac12afcc45/0-02-05-a794908f661f95664c27042104087fc6e48138959897a5936f0fc4320081cb7b_183d72202bdbfaf3.jpg#%7B%22uuid%22%3A%22e13bc288-ac28-4ea2-9113-621923f26d9e%22%2C%22w%22%3A480%2C%22h%22%3A271%7D"></figure><p>-2x bearing</p><p>-bolts</p><p>-2x aluminium servo horn 25T</p><figure class="image image-style-align-center image_resized" style="width:20.24%;"><img src="https://media.printables.com/media/prints/166520/rich_content/b6580ec9-bb89-4b27-a2b1-fadd3b8f6a68/images.jpg#%7B%22uuid%22%3A%228d090214-d721-4ae3-a65c-9873134b6c86%22%2C%22w%22%3A225%2C%22h%22%3A225%7D"></figure><p>-5v power suply</p>
