Rigol 1054Z / 1074Z / 1104Z Replacement Foot

prusaprinters

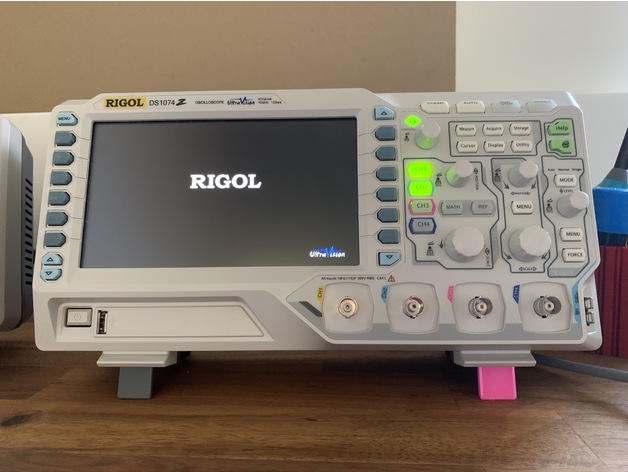

<p>Did the foot on your Rigol 1054Z oscilloscope break? Print a new one and fit it in minutes. This print is a bit "sloppier" than the original but it's close enough to lock in place.</p> <h3>Print instructions</h3><p>Print this at 0.05mm layer height (Ultra Detail) in PLA. It will need supports to avoid sag in the detents. I changed Overhang Threshold to 90 degrees, the Pattern to honeycomb, reduced Pattern Spacing to 0.5mm, and disabled Don't Support Bridges. Print it flat on the bed to maximize the strength of the pivots.</p> <p>Fitting the new foot. Remove four Torx screws from the 1054Z. Two small screws near each foot. Two larger screws hidden behind the handle. Fully removing the back panel isn't necessary. Separate the front and back panels just enough for the feet to pop out. The feet are sandwiched between the two panels and are easily removed.</p>
