Resin Vat Drip Base Remix

prusaprinters

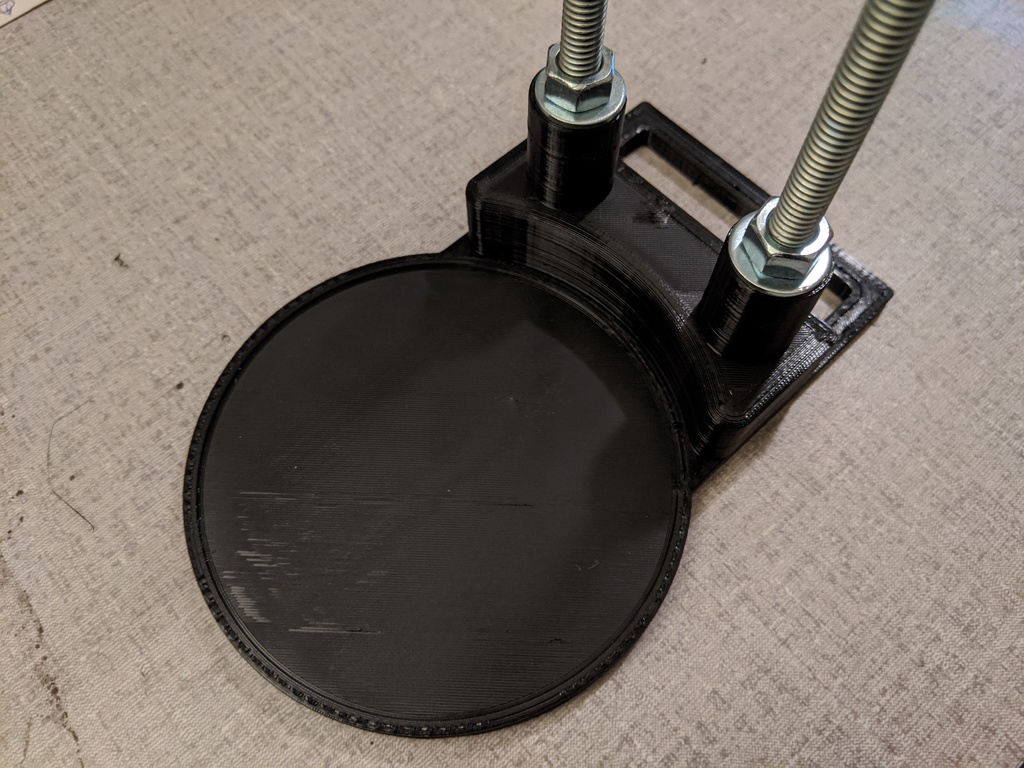

<p>After printing the original base for <a href="https://www.thingiverse.com/maxstier/designs">maxstier's</a> <a href="https://www.thingiverse.com/thing:3767887">Resin Vat Drip Stack</a>, I found that the assembly was a little too wobbly for my 5/16 threaded rod. This remix adds an extension to the back to add stability and counter sunk holes to add nuts to the bottom of the rods. The pressure of the rods being held by both sides of the base with nuts (and a washer on top) made the base feel much more stable.</p><p>Since I was not going to use them, I also filled the 2 center mounting holes to speed up printing time.</p><p><strong>Note:</strong> I used 6 top and bottom layers and 6 perimeters to ensure the base would not crush under the pressure of the nuts.</p><p>&nbsp;</p><h3>Print Settings</h3><ul><li><strong>Supports: </strong>Yes</li><li><strong>Resolution: </strong>0.2</li><li><strong>Infill: &nbsp;</strong>30%</li></ul>
