Replacement Rung Lock for TecTake Telescope Ladder and identical Products

prusaprinters

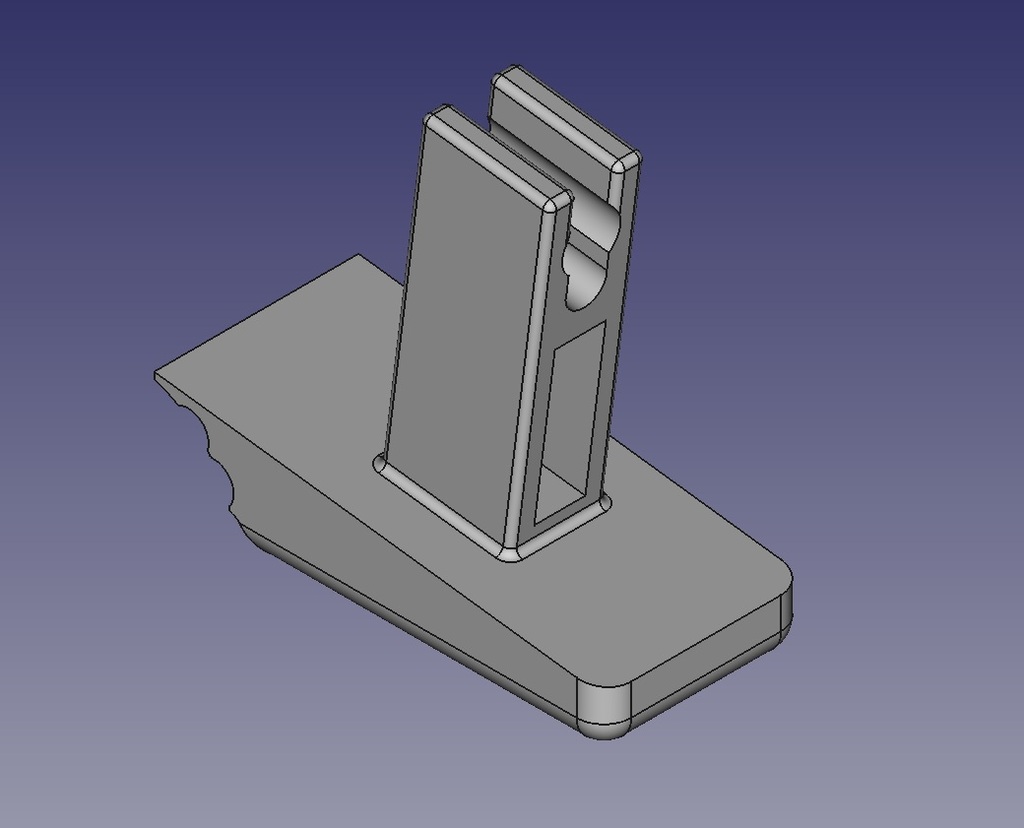

<p>The original rung lock of the ladder has a constructional issue causing a predefined breakpoint at the begin of the lock tongues. So a lot of these locks breaks over the time and can't be bought separate.</p><p>The new designed part does not have this problem and can be used instead of buying a complete new ladder.</p><h3>Print Settings</h3><p><strong>Printer:</strong></p><p>FIashForge Dreamer</p><p><strong>Rafts:&nbsp;</strong></p><p>No</p><p><strong>Supports:</strong></p><p>No</p><p><strong>Resolution:&nbsp;</strong></p><p>0.15mm</p><p><strong>Infill:</strong></p><p>75%</p><p><br>&nbsp;</p><p><strong>Notes:</strong></p><p>&nbsp;</p><p>Use 4 bottom layers, 6 top layers and 3 perimeter shells.<br><br>On FDM-printers it is highly recommended to print the lock in the attached two parts and in the given orientation.</p><p>If the part is printed with the tongues upward the connection of the tongues only depends on the adhesion of the separate layers causing the crack with minimal force.</p><p>If printed in the given orientation the tongues are much stronger and will not crack easy (see attached shot of the slicers result). Connect the part of the handle to the main part with some drops of super glue.</p><h3>How I Designed This</h3><p>designed with FreeCAD</p><h3>&nbsp;</h3><p>Category: Replacement Parts</p>
