Replacement for Mercedes A2016830035 ATTACHMENT ANGLE BRACKET
prusaprinters

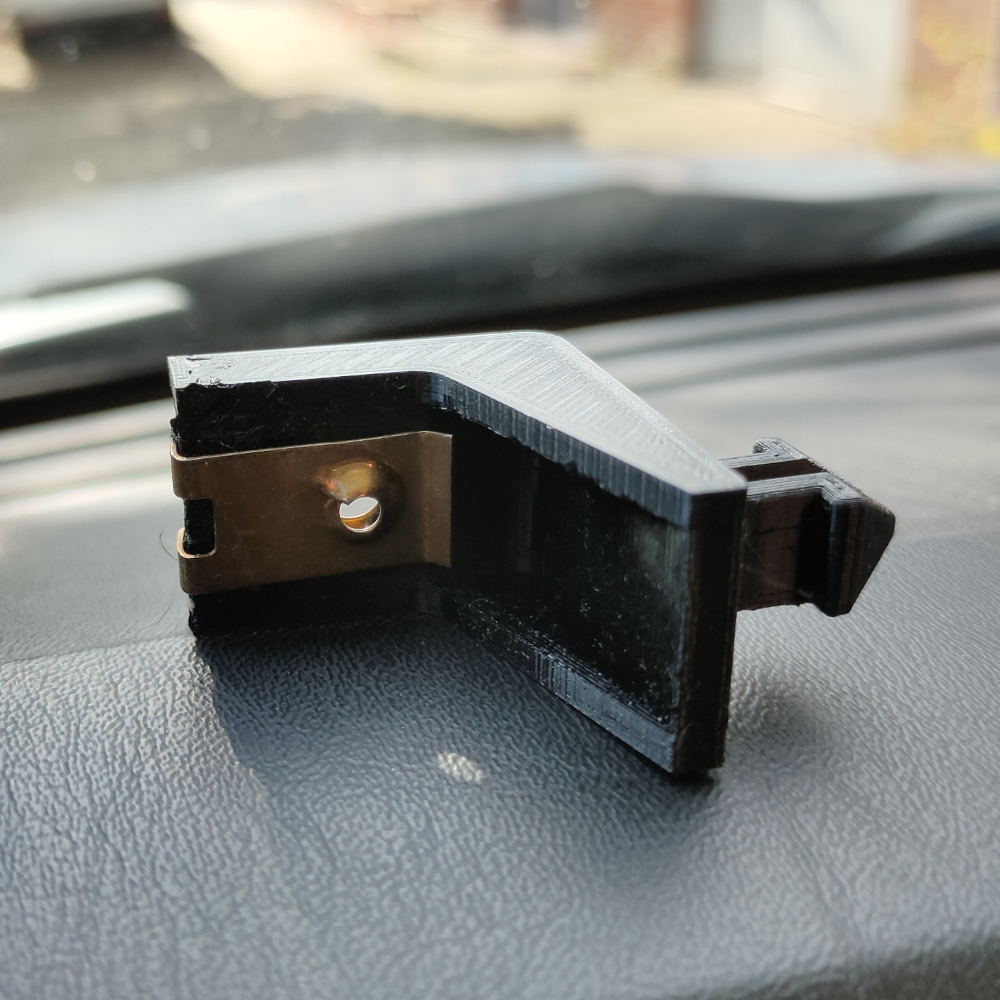

<p>An attachment angle for my car broke so I created a replacement in CAD.<br>For the unlikely case that anyone is searching for a replacement of this part, I put it here.</p><p>It's the part that connects the center console panel to the tunnel covering in the Mercedes W201 (older model years).<br>For reference it's number 44 in this list:<br><a href="http://mb-teilekatalog.info/view_SubGroupAction.php?lang=E&mode=BM&class=1&aggtyp=FG&catalog=431&model=201024&group=68&subgrp=300">http://mb-teilekatalog.info/view_SubGroupAction.php?lang=E&mode=BM&class=1&aggtyp=FG&catalog=431&model=201024&group=68&subgrp=300</a><br>The threaded chuck (41, A2019840325) and the sheet metal screw (38, N007981003203) can be reused.</p><p>Highly recommend to print in the same orientation as the part is laying in the images.<br>Otherwise, the clip might break too easily when inserting into the original mounting position on the tunnel covering.</p>
