Re-ARM mount for 2020 Kossel mini
prusaprinters

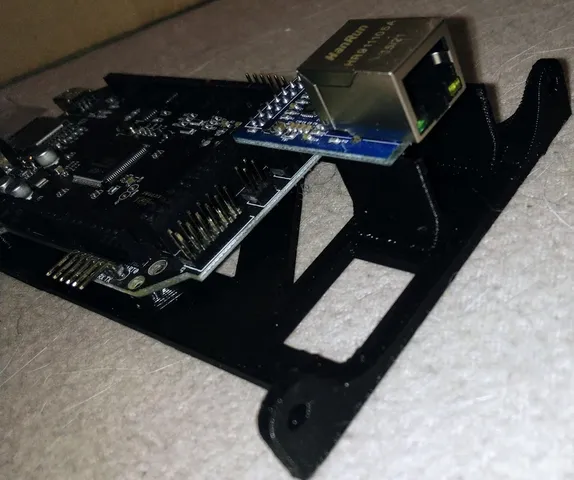

Basically redesigned from scratch since I could not download the DesignSpark Mechanical for the rsdoc file. It is shorter than whitewolf103187's version which is too long for my Anycubic Kossel mini and the 2020 mounting holes are M3 and 10mm from the botton so the plate bottom is directly on the desk. Use M3x5 - M3x8 screws to secure the board, I used just 3. 2018-08-05 updated to v3 included a supporting thing in case the mount is not the bottom 2017-05-10 updated to v2 corrected Ethernet support positions corrected mounting holes near Ethernet so they fit between the pin headers lowered the mounting holes so the Ethernet supports height fits better raise the 2020 mounting upper part to have more contact surface To Do: add a hole in the Ethernet supports so you can secure the Ethernet with a zip tie Print Settings Printer: BigBox Rafts: Doesn't Matter Supports: No Resolution: 0.3 Infill: 20 Category: 3D Printer Parts
