Ratchet Action Cable Guide Clip

prusaprinters

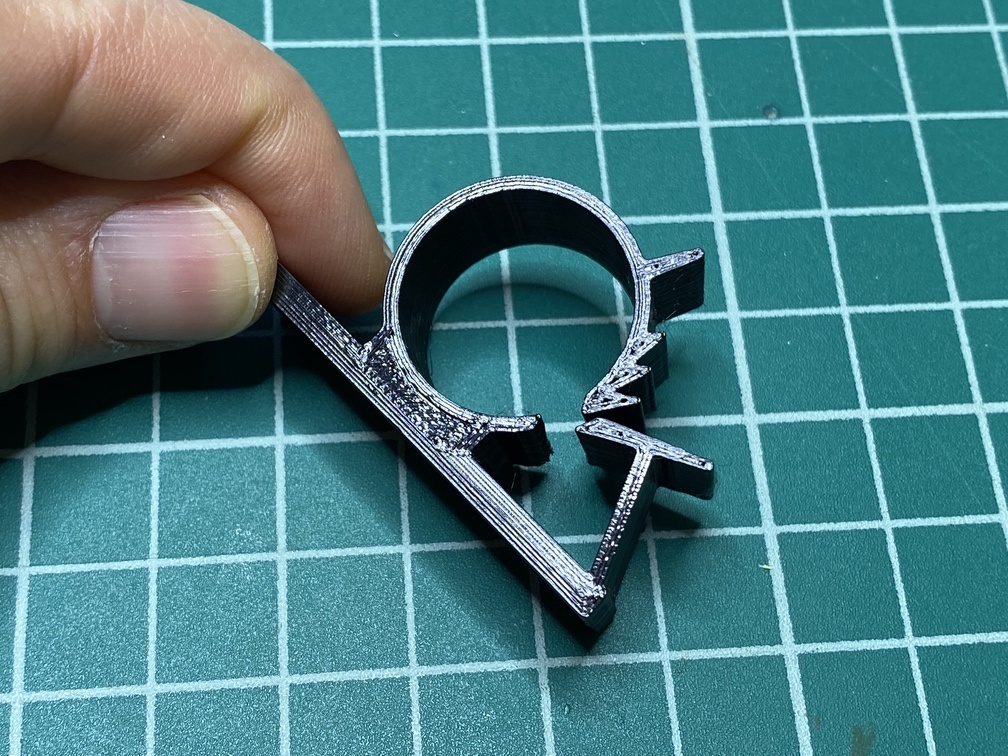

<p>A cable management clip with ratcheted stops and a screw hole. I designed it similarly to some commercials clip I bought a long time ago, before I had a 3D printer. My design isn't as good as the commercial version, but it was fun to work on and suits my needs.</p> <p>My preferred way of attaching these to the underside of my desk is to use hot glue, though double-sided tape also works. The screw hold provides additional support if needed.</p> <p>At 100% size, the inner diameter of the ring is around 22mm (7/8")</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Prusa</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>i3 MK3</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div> <p><strong>Resolution:</strong></p> <p>0.2</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>15%</p></div> <p><strong>Filament:</strong> Hatchbox PETG Black</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>I recommend that you print these clips with a strong filament such as PETG or Nylon, and stay away from PLA since it won't be able to take repeated opening and closings without snapping.rnrnAlso, using 4-5 perimeters will give the clip strength without needing to fiddle with the infill. The main ring will still bend.</p></div> </p></p></p> Category: Office
