Raspberry Official 7" Touch Car Phone Mount

prusaprinters

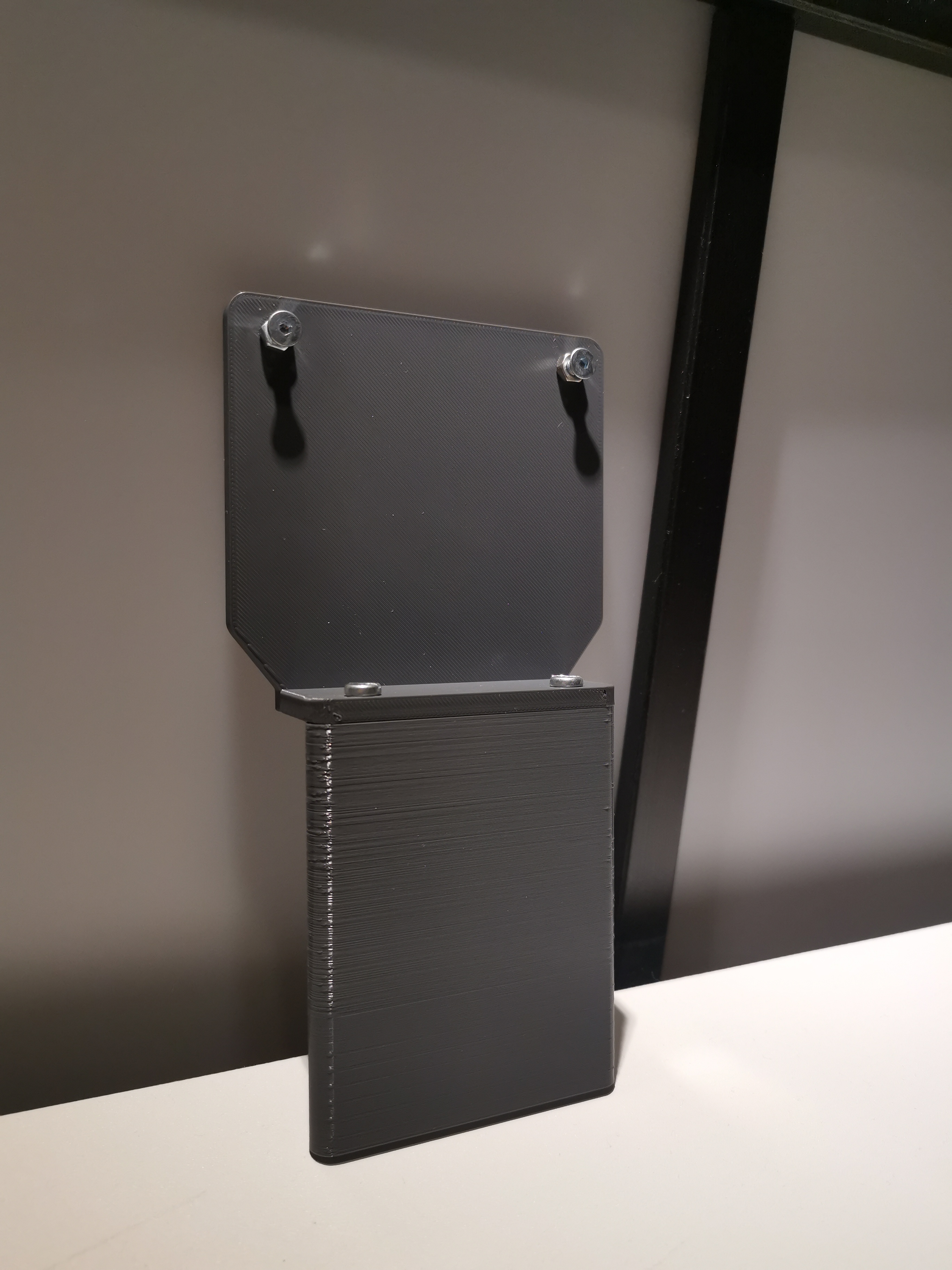

<p>This model is to mount the official raspberry pi touch to a phone mount. I have something like a clamping phone mount in the car and wanted to mount my raspberry pi to it.</p><p><strong>Sadly my phone mount is to weak (or the touch is to heavy) and in the corners it moves a lot so I have to overthink this design.&nbsp;</strong></p><p>You can use the holes in the back to slide it over the screws and the bottom part is shaped like my phone (Huawei mate 20 pro) so it can clamp into the mount.</p><p><strong>Screws I used:</strong></p><ul><li>To connect the parts: M4x25 (Holes are about 30mm deep)</li><li>To mount the screen: M4x16 countersunk (didn't have something else)</li></ul><p><strong>My Print Instructions/Settings</strong></p><p>0.25mm Draft Setting for PrusaMINI in PrusaSlicer (But with Gyroid infill)</p><p>Infill: 15% (I believe)</p><p>No supports needed.</p><p>&nbsp;</p>
