Rain water tank easy read gauge

prusaprinters

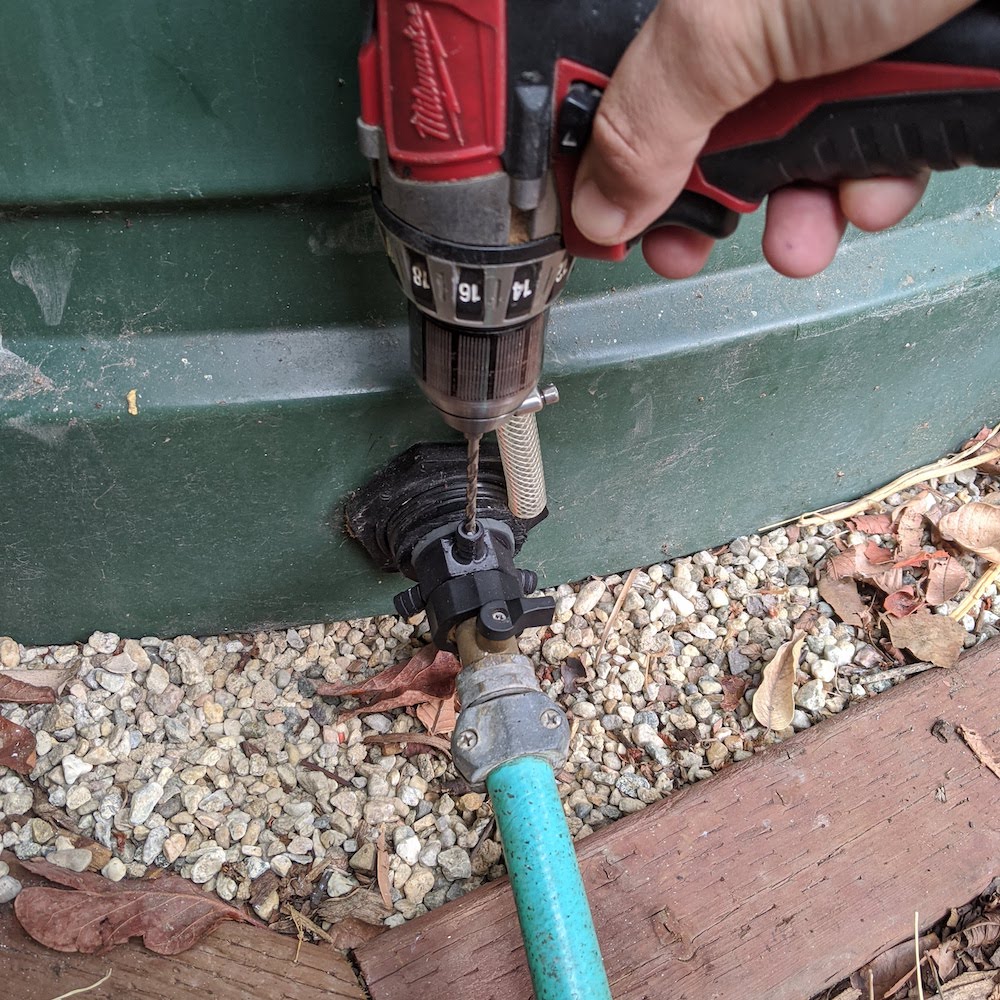

<p>A fitting and some attachments for installing clear tubing to a rain water tank in order to see how full it is.</p> <h3>Print instructions</h3><ul> <li>The idea behind having 3 barbs that print closed is that after attaching the fitting you can choose the one that is pointing up and drill a hole to attach your tubing. </li> <li>The fitting has a groove for a 1" gasket or o-ring.</li> <li>Printed using ASA due to it's UV resistance - supports recommended, I did mine with 100% infill (solid) just to be sure. </li> <li>The top bracket prints in two parts that need to be acetone welded. </li> <li>The brackets are meant for 1/2" inch clear tubing and use 4-40 size screws. </li> <li>Mounted to the tank using 3M Extreme Mounting tape which claims to be good for outdoor applications</li> </ul>
