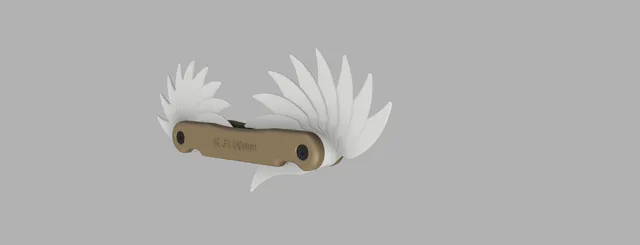

Radius Gauge 31-50mm

prusaprinters

Radius gauge for measuring inner and outer radius from objects. Other radius gauges:1-10mm - https://www.printables.com/model/378121-radius-gauge-1-10mm11-30mm - https://www.printables.com/model/380852-radius-gauge-11-30mm Assembly:For Metric:2x M4x25 Flathead screw2x M4 nut (Nyloc preferred) For Imperial :2x  #6 - 1" Flathead Machine screw 2x #6 Nut (Nyloc preferred)NOTE: I haven't test these personally, but previous gauge tools were fine and same tolerances used Lazy way:Key ring or string to hold everything together Printing:0,2mm first layer and rest 0,15 for the bladesSides can be printed fully with 0,2mm layer heightUse brim, if problems, for me it was fine withoutIf you are planning to use hang plate in the tool remember to print 2 of them for the assembly to work correctlyClean screw side added if you want to add your own text or put all the gauges or just the ones that you need to one tool.RevisionsRev.ChangesDate2Clean screw side added15 Feb 2023
