Prusa Pulley for M5x30 hex-socket screw (ASA)
prusaprinters

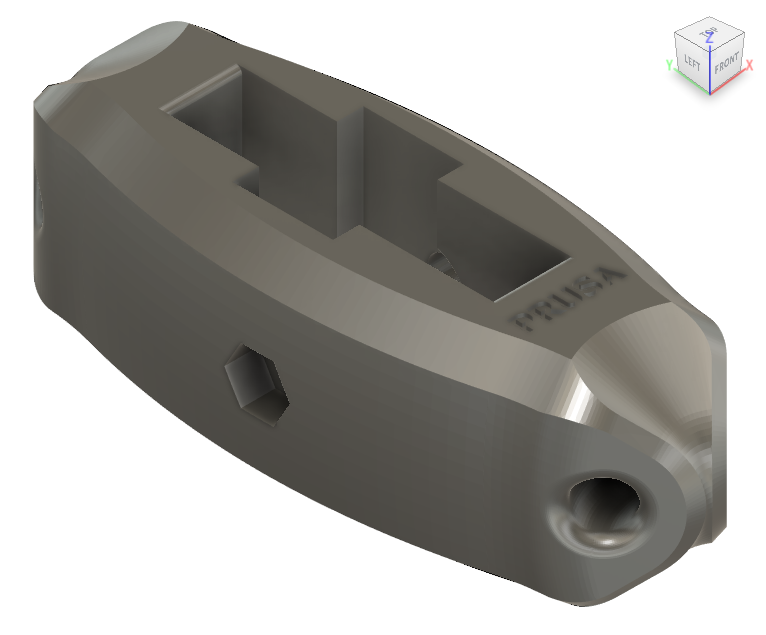

<p>I had some M5x30 hex-socket screws (DIN 912) and M5 nyloc-nuts lying around and wanted to use them for this pulley.<br/> Scaling everything up to 125% like in the original description would not work because of the short screw length. So I modified the body for the screw-head and bigger nut. I also increased the hole-diameter of the shaft to 5.2 mm.</p> <p>The wheel model of the pulley is unchanged.</p> <h3>Print instructions</h3><p>The Prusament PC Blend has not arrived yet so I printed the parts in white natural ASA. I printed them separately.</p> <p>For the body-part I used 4 perimeters to have a solid region around the screw-holes. With 15% gyroid infill and draft-shield it takes ~3 hours to print.</p> <p>The shaft was printed solid (2 perimeters, 100% infill).<br/> For the wheel I used 2 perimeters and 30% grid-infill.</p>
