Prusa MK3S Filament Holder Wall Mount

prusaprinters

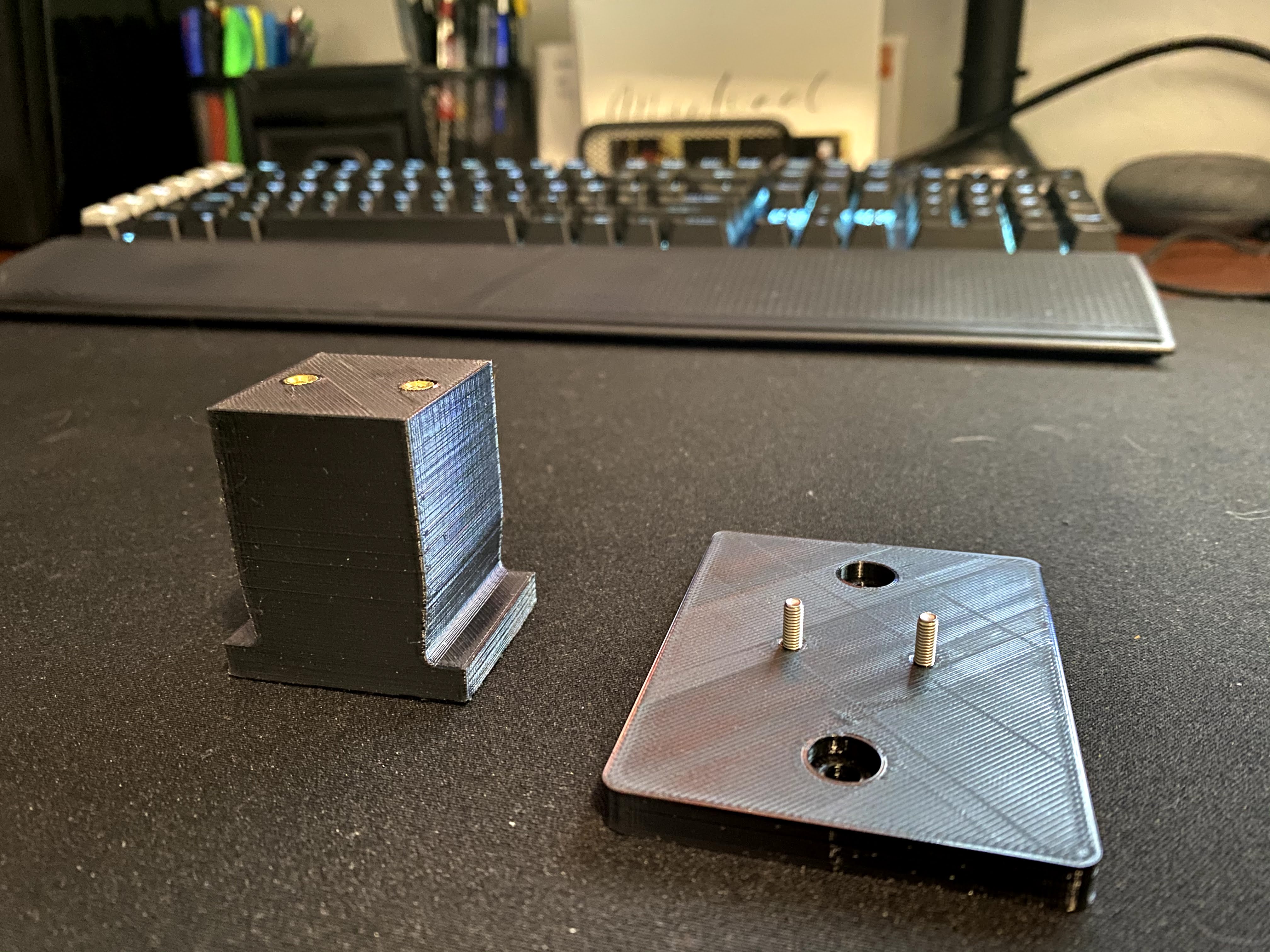

<p>I rearranged my TV above my deskspace and ended up not accounting for the filament holder above the printer. I used this opportunity to create a wall mount that utilizes the filament holder included with the MK3S. It supports 2-1 kg rolls of filament easily and allows the holder to grab the lips of the mount far enough away from the wall that the spools do not make contact with it.</p> <h3>Print instructions</h3><p>The mount comes in 2 pieces (see attached pictures). You will need 2 M3 inserts and bolts to attach the base to the handle mount. You will also need mounting hardware to mount the assembly to the wall (obvs); I mounted my assembly with regular drywall anchors. The base plate is counterbored on either side to accept 2 #8 screws for wall mounting and 2 M3 screws to attach to the handle mount.</p> <p>I printed the mount in PETG at 20% infill with a gyroid pattern, although this could definitely be made in PLA safely at a higher infill (haven't tried).</p>
