Prusa MINI Top Mount Spool Holder

prusaprinters

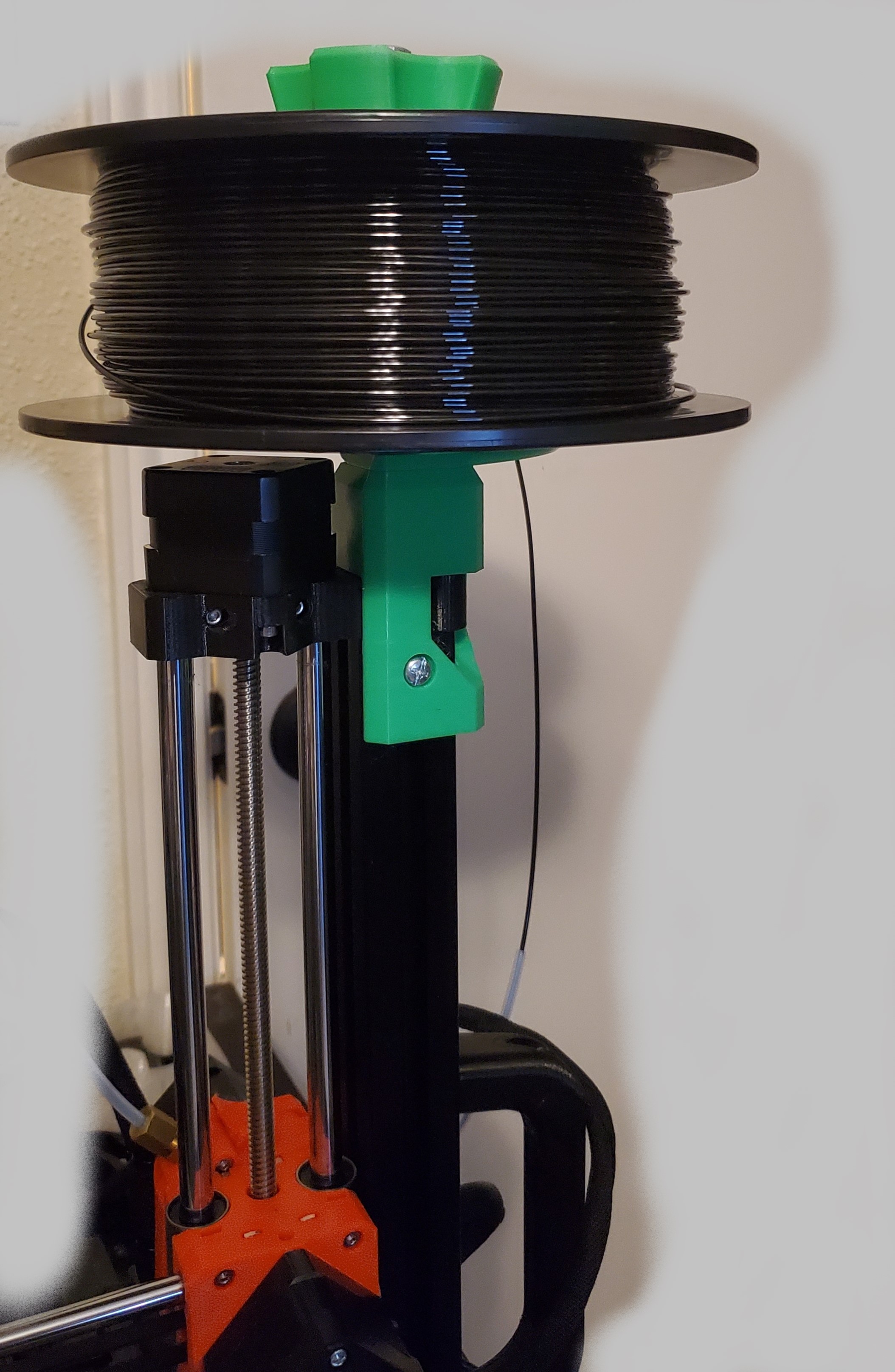

<p>A spool mount to attach the filament to the printer to make a self- contained printer!</p> <h3>Print instructions</h3><p>I first tried mounting the spool on the side of Z-axis, but it became unstable and I didn't want to stop there. I found a way to mount the spool on the top of the Z-axis, and now have conveinent printer package.</p> <p>I used <a href="https://www.thingiverse.com/thing:1241566">this spool holder</a> and created a base and filament guide for it.</p> <p>Hardware:<br/> Spool bolt:<br/> 5/16" bolt (length depends on bolt size, add 28mm to length to mount, up to 35mm will fit)<br/> 5/16" nut</p> <p>One M3x10 screw to keep the filament guide in place (optional, but works better with).</p> <p>Attaches to the 3030 frame with an M5x12 and t-slot nut (same as the Prusa MINI handle and other accessories).</p> <p>Print details - PrusaSlicer .15 detail<br/> PETG<br/> Layer height: 0.15<br/> Infill: 15% gyroid<br/> Perimiters: 2</p> <p>Print the bracket upside down for support free printing.</p> <p>Printed on the MINI, for the MINI</p>
