Prusa Mini Gyroscope for x-axis

prusaprinters

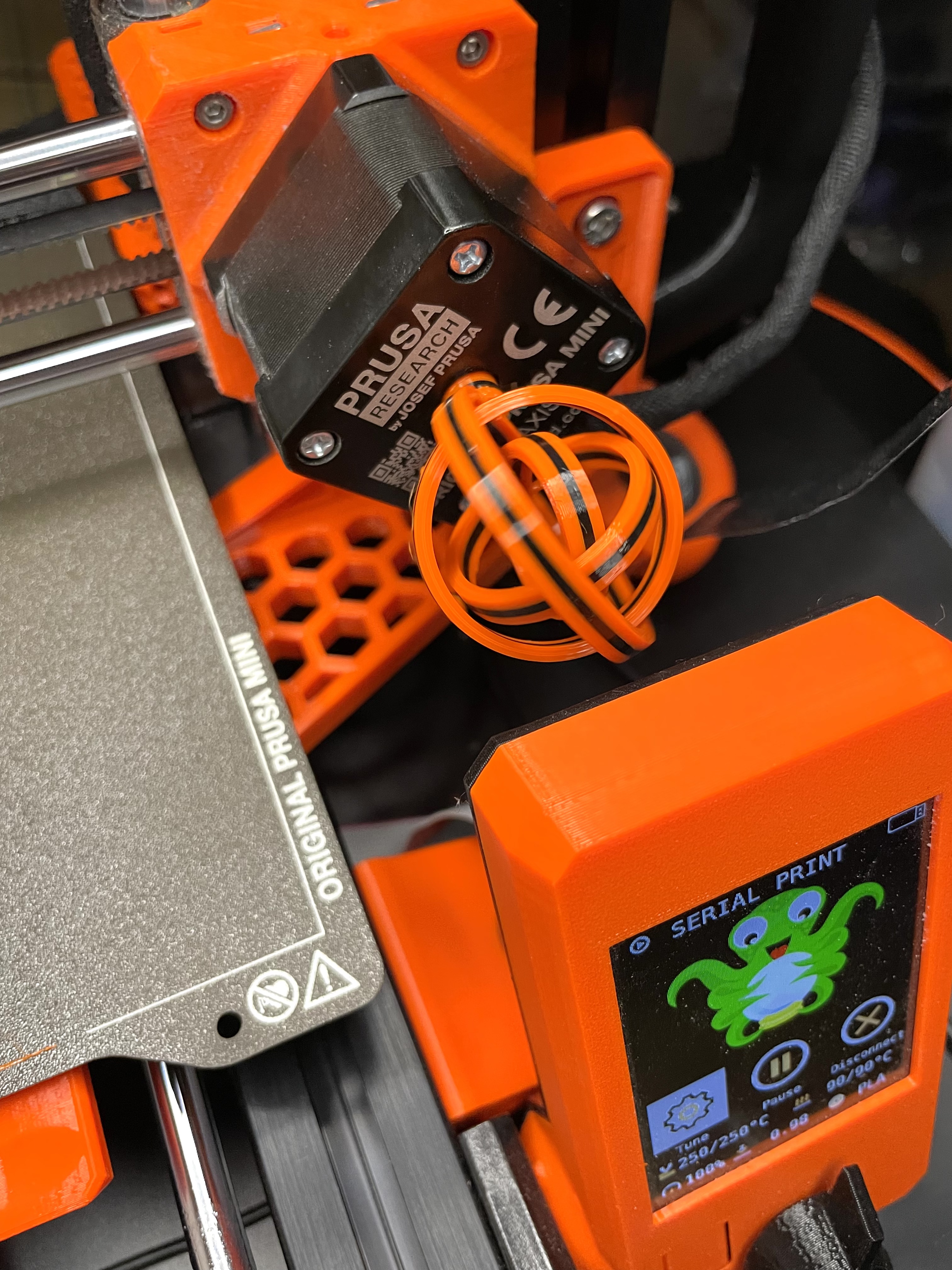

<p>Remix of the <a href="https://www.prusaprinters.org/prints/32547-extruder-gyroscope-print-in-place-with-press-fit-m">Extruder Gyroscope Print in place with press fit magnets</a>&nbsp;</p><p>This gyroscope snap onto the Prusa Mini+ x-axis shaft without any magnets</p><p>It is made for the Purse Mini+ but should be compatible with the MK3</p><p>If not, let me know and i will try to make the necessary adjustments</p><h4><strong>Print instructions</strong></h4><ul><li>It is a tight fit, make sure your printer is well calibrated&nbsp;<ul><li>Try printing the <i>Gyro connector</i> first to see how it fits&nbsp;<ul><li>You may try different connectors</li></ul></li></ul></li><li>The parts are already oriented in the good position</li><li>The color changes already set in the .3mf file</li><li>Print the parts in PETG or PLA</li><li>Nozzle diameter: 0.4 mm</li><li>Layer height: 0.2 mm</li><li>Perimeters: 2~3</li><li><i><strong>No supports</strong></i></li></ul><figure class="image image_resized" style="width:100%;"><img src="https://media.prusaprinters.org/media/prints/120851/rich_content/f9a703ea-d350-4cd8-b463-9bbfd7a3ed34/ezgif-5-831fdba795.gif#%7B%22uuid%22%3A%2203074e45-b6ac-43fd-b840-766b8e3ac3d7%22%2C%22w%22%3A400%2C%22h%22%3A404%7D"></figure>
