PRUSA "Magic Wall" for extrusion rotation indicadors

prusaprinters

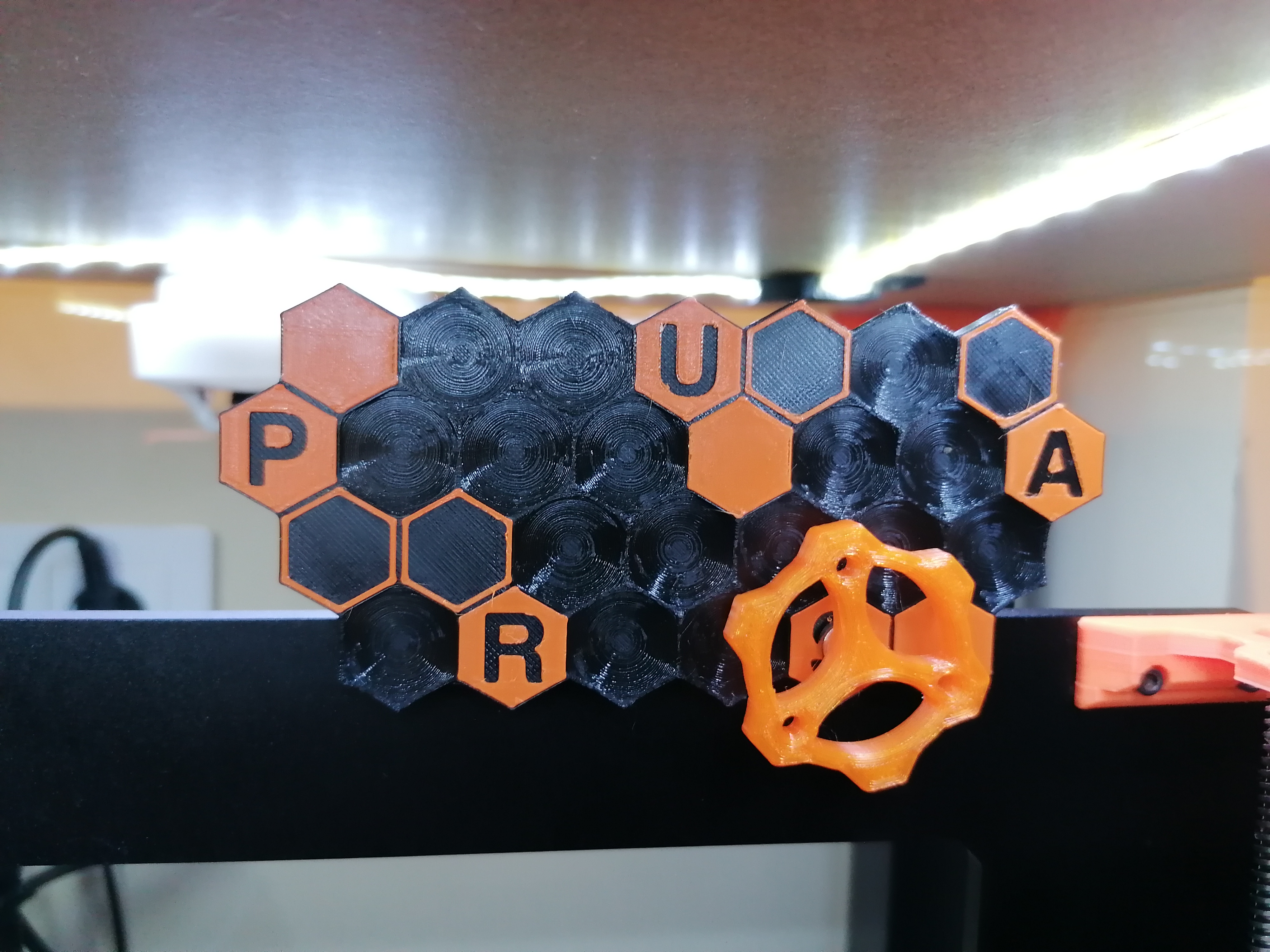

<p>This gadget allows you to store up to 5 of the popular <a href="https://blog.prusaprinters.org/visualize-extruder-motor-movements_7392/">extruder rotation indicators</a>. It is attached to the MK2/S, MK2.5/S and MK3/S+ frames using magnets so you can easily remove it in case is necessary. For the design I was inspired by the <a href="https://www.prusaprinters.org/prints/18-prusa-reception-tiles-prusalab">Prusa Reception Tiles design</a></p> <h3>Print instructions</h3><p><strong>Printing:</strong></p> <p>Print main part at 0.15 mm height. The print is designed so that you can make a color change at the last 2 layers to get a beatiful two color print in a simple way (only with 1 filament change).<br/> <strong>New ironing feature avalilable on latest version of PrusaSlicer is enabled and used for last top layer.</strong></p> <p>Print supports at 0.2 mm height.</p> <p>I have attached the following files on this print:</p> <p>1.- MK3S gcodes for 2 color print (1 color change at the last 2 layers) of main part and supports.<br/> 2.- <em>.3mf files for main part and supports<br/> 3.- </em>.slt files for main part and supports<br/> 4.- *.scad files if you wish to remix or modify my design.</p> <p><strong>Assembly:</strong></p> <p>You will need up to 7 8x3 mm neodymium magnet (same as used for rotation indicators). For the assembly press-fit magnets to holes on main parts. If assembly is difficult by hand you may need a small hammer (be carefull!!). Be sure that magnets have the proper orientation - If not rotation indicators will not attach to the "Magic Wall".</p>
