Prusa Ikea LACK enclosure - slotted hinged bottom corners

prusaprinters

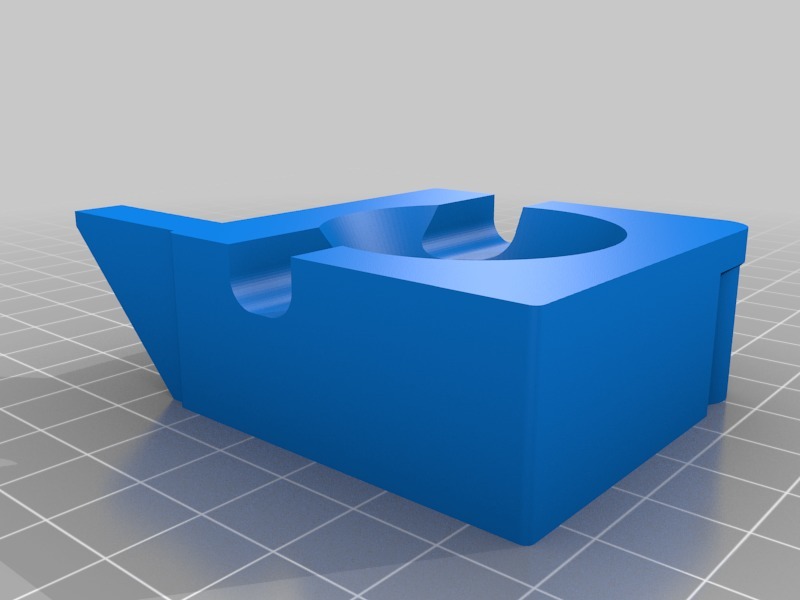

<p>This is a slotted version of the hinged bottom corners of the Ikea LACK enclosure by Prusa. Using these corners instead of the originals, you can run a cable through the front corners.</p> <p>My recommendation is that everyone should be using these instead of the original versions from Prusa. That way, you can run a cable whenever you want.</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Prusa</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>i3 MK3</p></div><strong>Rafts:</strong></p> <p>No</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div></p> <p><strong>Notes:</strong></p> <p>No special material or printing methods are needed for these parts.</p> <h3> How I Designed This</h3> <p>I imported the STL from the original files into Sketchup. I copy/pasted the holes from the existing slotted parts onto the hinged parts.</p> <p>To make the holes, I copied the U-shape of the hole from the original part, and then used push/pull to turn that into a 3D part. I used the "intersect faces with model" trick in Sketchup to merge that part into the model in the correct space. I then deleted the "hole" to make an actual hole.</p> <p>Sorry if that's not clear.</p> <p>Kudos to <a href="https://forums.sketchup.com/u/Box">https://forums.sketchup.com/u/Box</a> for showing me how to fix a problem with my part.</p> </p></p> Category: 3D Printer Accessories
