Prusa i3 Rework X-carriage with universal top mount

prusaprinters

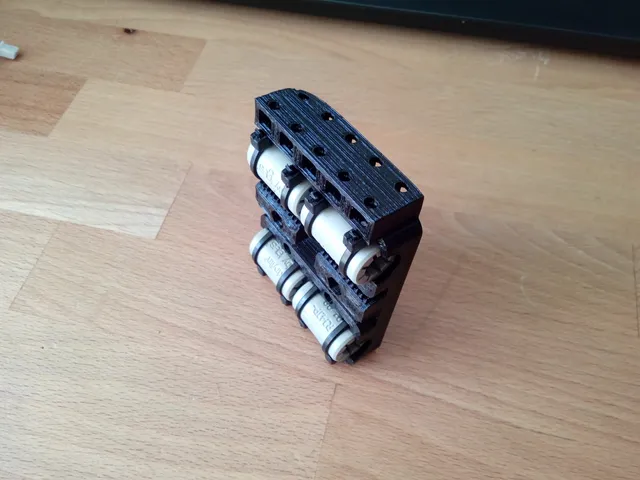

Discontinued - I'm using https://www.thingiverse.com/thing:3647221 now. [edit] The x-carriage works quite well - I've been printing with it for several months now. I didn't really mount anything to it though. However, the holes are quite useful to fix the cables using zipties. There is a lot of wasted space on the back of the X-Carriage - so I decided to remix the original X-Carriage to support mounting stuff on the top - e.g. a universal back-mount which is also provided here. Basically there are 2x5 3mm holes 10mm apart on the top of the carriage with small holes to hold the nuts. I also increased the size for the sliding bearings a bit, as they were a bit too small. I will extend the files by a fan-mount for a big blower fan on the back. [edit] -> this idea didn't really work -> won't do Furthermore, I will also add an adjustable x-stop to be mounted on top of the x-carriage. [edit] -> this does not make much sense since the x-stop-mount can easily be moved -> won't do Unfortunately my print of the carriage didn't stick to the build plate on one corner. Will post better pictures once everything is finished. Print Settings Printer: CTC Prusa i3 Reprap MK8 DIY Rafts: No Supports: No Resolution: 0.2 Infill: 30% Filament: EFORINK PLA Black Notes: Other settings: * Wall Line Count: 3 * Top/Bottom Layers: 3 Category: 3D Printer Parts
