Prusa i3 LED strip mount with Max Z clearance

prusaprinters

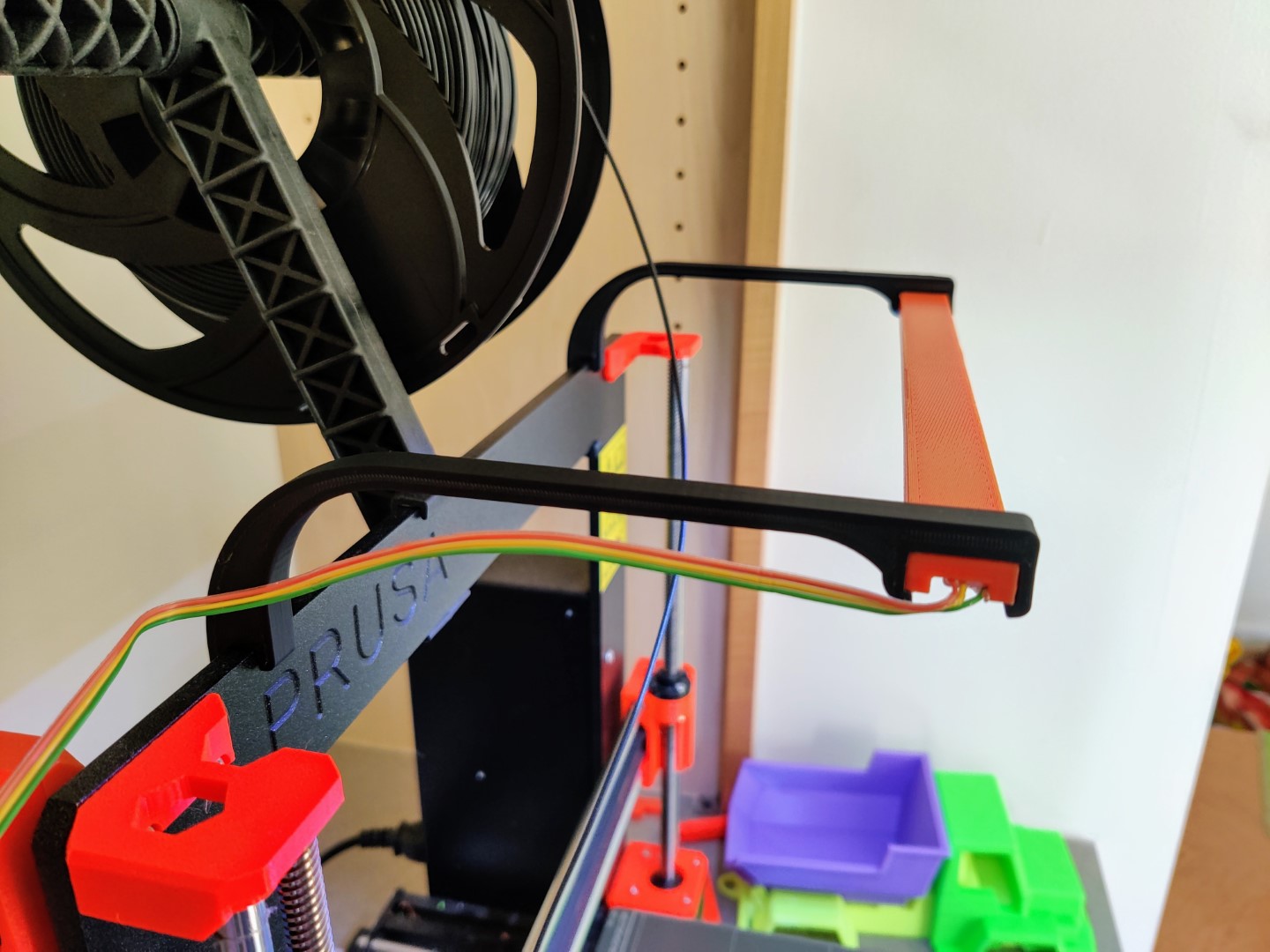

<p>This light bar is a combination of "<a href="https://www.thingiverse.com/thing:2205617">Prusa i3 MK2 LED Light strip Brackets</a>" and "<a href="https://www.thingiverse.com/thing:3310317">Prusa LED Light Bar</a>". &nbsp;I liked that the latter design works with standard LED strips (not an expensive LED light bar), but it gets in the way when the printer prints above 190mm or so. I redesigned the first design to work with the LED tray from the second print but uses the flush mounting mechanism. &nbsp;</p><p>I also changed the design from being square to more curved so that it doesn't get in the way of changing filament rolls above the printer. &nbsp;</p><p>The object is symmetrical so no need to mirror it, just print two of them. &nbsp;I recommend zip tying the LED strip wires to the bar frame. &nbsp;</p><p>To use addressable WS2812B led strips with your printer, install the <a href="https://plugins.octoprint.org/plugins/enclosure/">Enclosure plugi</a>n and follow the <strong>Neopixel</strong> steps in the <a href="https://github.com/vitormhenrique/OctoPrint-Enclosure">guide</a>. &nbsp;The lights turn on automatically when you start a print, and turn off automatically when the print ends. &nbsp;Great if you're using <a href="https://www.thespaghettidetective.com/">The Spaghetti Detective</a> to monitor your prints for failures automatically. &nbsp;</p>
