Prusa Enclosure PSU holder (v1 Black PSU holder)
prusaprinters

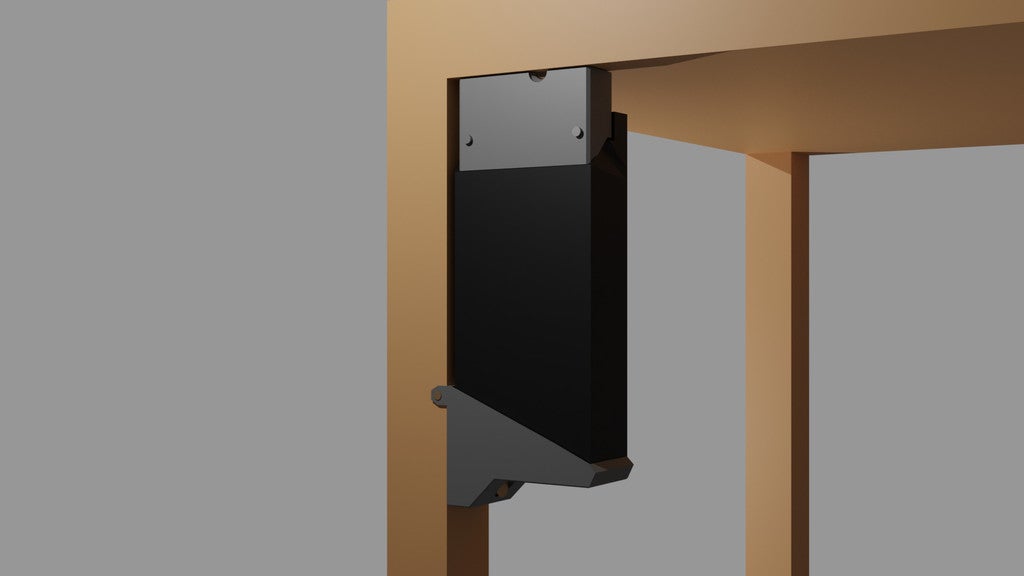

<p>While I was doing my Ikea Lack table base enclosure for my Prusa i3 MK3s I wanted to mount my PSU outside the enclosure.<br>But the originally designed PSU holder wasn't suiting my PSU unit.<br>So I remixed the orignal parts.</p><p> </p><h4>Assembly</h4><ol><li>Mount the upper part to the PSU.</li><li>Mount the bottom part to the table, use PSU as reference.</li><li>Slide the PSU and secure it with the screw to the bottom of the tabletop.<br> </li></ol><h5>Assembly video</h5><figure class="media"><oembed url="https://youtu.be/qhENKqLbSSo"></oembed></figure><h5> </h5><h5>Building the enclosure video</h5><figure class="media"><oembed url="https://youtu.be/qmecMkWWHSc"></oembed></figure><p> </p><h5>The original Prusa guide</h5><p><a href="https://blog.prusaprinters.org/cheap-simple-3d-printer-enclosure_7785/">https://blog.prusaprinters.org/cheap-simple-3d-printer-enclosure_7785/</a></p><p> </p><h4>Printing Settings</h4><p>Rafts: No</p><p>Supports: No</p><p>Resolution: 0.2</p><p>Infill: 30%</p><p>Filament: Fiberlogy PETG Black</p><p>Use 3 perimeters - same settings as for printing the printer parts.</p><p> </p><h5>Caution</h5><p>The render is a bit confusing I had to forgot that there are switch and wire on the one side of the PSU (thanks to @milfordoj for pointing that out).</p><p> </p><h5>Remarks</h5><p>For switching the printer I am using an electric extension cord with switch mounted to the bottom of the table on the side.</p>
