Prusa Bear Spool Holder and Filament Guide Set

prusaprinters

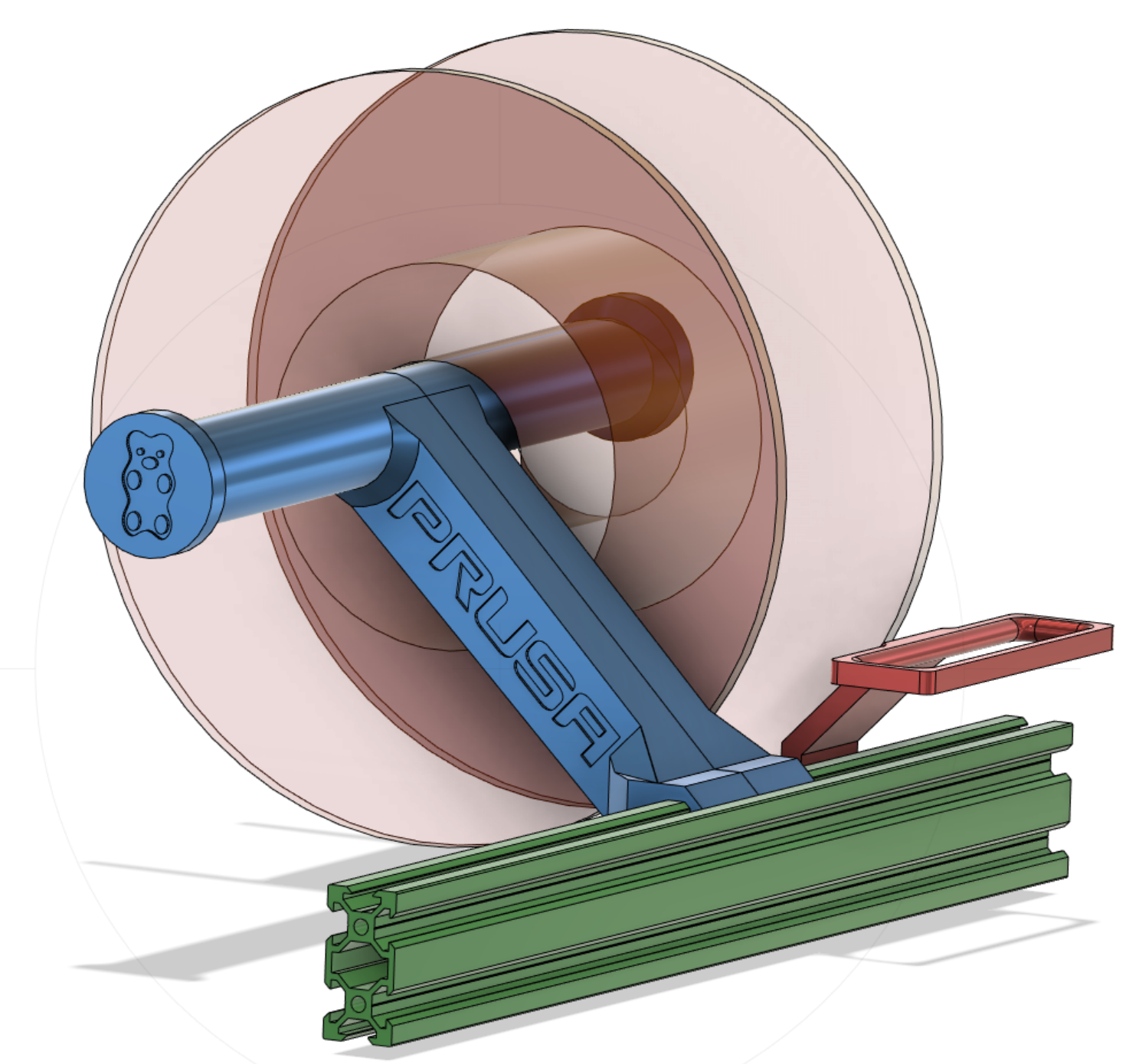

<p>This is my version of the spool holder and guides. There are left and right spool holders along with multiple filament guides. Bowden, circle, center loop, right loop and left loop. There are also two different clamps to secure them to the 2040 frame. A slide version and a screw version. So you can decide which you want to use. For the slide versions, the tolerance is tight so if you have some elephant feet issues, you may need to clean that off. Also, the slide version of the Arms is really tight. That does loosen up as the parts dry and shrink a tiny bit. Note that the pics don't show the versions of the guides that use screws. You will find those in the files and the name should be obvious.</p><p>UPDATE: I changed some of the file names to make it more clear which is which. I also added a 4 screw spool arm so you have more choice in the mix of parts you'd like to use.</p><p>UPDATE: Added 2 spool arms with a requested mod which raised the spool up 2.7cm to clear light bar.</p><h3>Print instructions</h3><p>You should use PETG, 20% fill, guroid fill pattern, 5 top 5 bottom layers, 3 perimeters. Take a look at the pics and stls before you start printing to decide what you need. The "clamps" are the top part that attaches to the 2040 and the "locks" are the bottom part.</p>
