Protective Face Shield Hyper-Speed Remix - RC3HX 5mm

prusaprinters

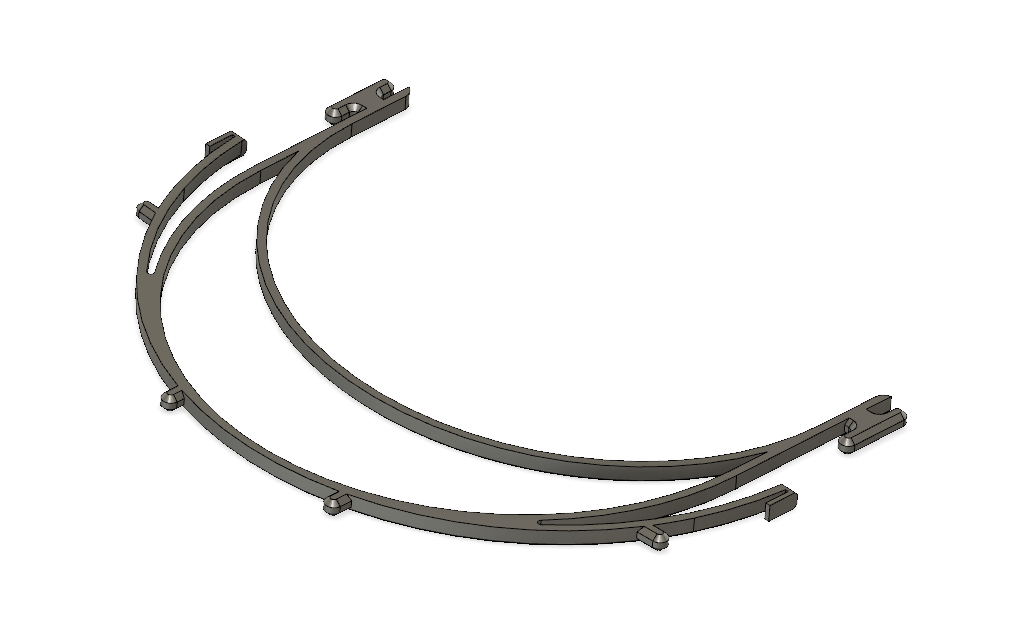

<p>5mm design update from the previous high-speed remix - RC2X</p> <p>Currently in use at GP surgeries around Portsmouth, UK and community keyworkers. We are producing about 100 a day on 4 printers</p> <p><strong>Revision 1</strong></p> <p>• Modified width to be compatible with standard Ender 3</p> <p><strong>Key difference with RC3</strong></p> <p>• 5mm total height<br/> • Optimised for speed: about 30 minutes to 1 hr each<br/> • Adapted to fit A4 or A3 sheets, with no changes in dimensions of RC3<br/> • Experimental stacking: tested 20 batches</p> <p><strong>Files</strong></p> <p>Stack of 6: estimated print time 5 hours (record: 3 hrs)<br/> Stack of 11: estimated print time 9 hours (record: 6 hrs)</p> <p>Only print the stack of 11 if your printer is enclosed and highly tuned. Higher risk of delamination 6 and above.</p> <p>Only print at <strong>0.25mm</strong> layer height. Any other layer height will result in a fused solid print.</p> <h3>Print instructions</h3><p>0.25mm Layer Height<br/> 3 Perimeters<br/> No Supports<br/> 4mm Brim or 1 Layer Raft</p>
