Pixel G1S honeycomb grid

prusaprinters

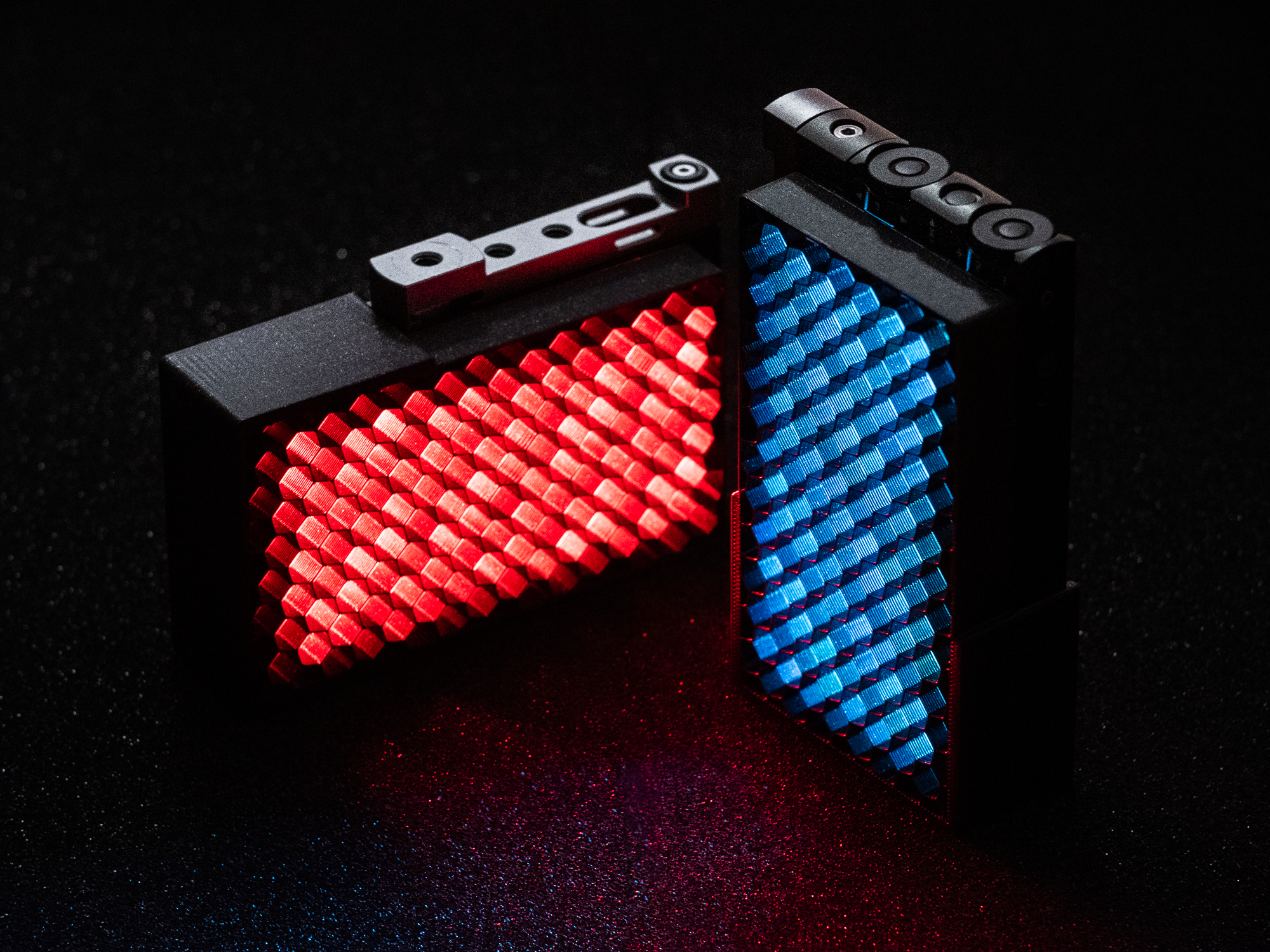

<p>This honeycomb grid slides on to the Pixel G1S RGB light to focus the light beam coming out of the fixture. It was printed by modifying the slicing parameters to leave out the upper and lower layers for the light shaping part. Printing it in black or best matt black gives best results.</p><p>The STL-file contains the basic shape, you may fill in your own infill pattern and leave out the top and bottom layers.</p><p>The 3MF-file contains a honeycomb grid aswell as top and bottom layer modifiers and a simple support structure, though it might print fine without it.</p><p>The beam angle can be varied by scaling the infill pattern to size. Feel free to experiment and even use a completely different pattern!</p>
