Pipe Clamp Phone Holder

prusaprinters

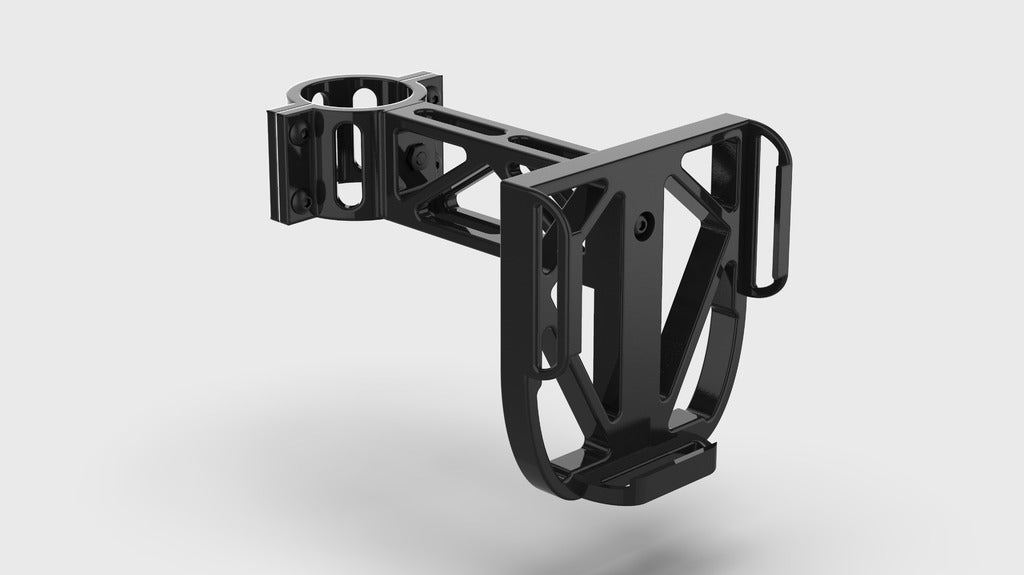

<p>I designed this phone holder so I could mount it to my monitor arm. The diameter of the pipe the holder mounts to, is 32mm. For the dimensions of the phone holder itself, look at the final image, which is a technical drawing with the most important dimensions.</p> <p>The phone holder is printed in 4 parts, though you will need some extra hardware to put it together. In front of the technical drawing is an image that shows what specific hardware is required.</p> <p>If you want to use the same hardware I used, then you can order the nuts and bolts from the following link (affiliate): <a href="https://bit.ly/2VBpAAh"> Hardware</a></p> <p><strong>Support</strong><br/> If you want to support me for the designs I publish for free, please consider using my <a href="https://bit.ly/2XYWpHW">AliExpress Affiliate Link</a> when buying something from AliExpress. It doesn't cost you anything extra, but helps me out a lot :)</p> <h3>Print instructions</h3><h3>Category: Mobile Phone Summary</h3> <p>I designed this phone holder so I could mount it to my monitor arm. The diameter of the pipe the holder mounts to, is 32mm. For the dimensions of the phone holder itself, look at the final image, which is a technical drawing with the most important dimensions.</p> <p>The phone holder is printed in 4 parts, though you will need some extra hardware to put it together. In front of the technical drawing is an image that shows what specific hardware is required.</p> <p>If you want to use the same hardware I used, then you can order the nuts and bolts from the following link (affiliate): <a href="https://bit.ly/2VBpAAh"> Hardware</a></p> <p><strong>Support</strong><br/> If you want to support me for the designs I publish for free, please consider using my <a href="https://bit.ly/2XYWpHW">AliExpress Affiliate Link</a> when buying something from AliExpress. It doesn't cost you anything extra, but helps me out a lot :)</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong> Anycubic</p> <p><strong>Printer:</strong> All-metal Mega</p> <p><strong>Rafts:</strong> No</p> <p><strong>Supports:</strong> Yes</p> <p><strong>Resolution:</strong> 0.1mm</p> <p><strong>Infill:</strong> 100%</p> <p><strong>Filament:</strong> ColorFabb PLA/PHA Standard Black<br/> <strong>Notes:</strong></p> <p>You might want to take a look at the orientation of the midpiece, because too much support material can end up causing the print to look quite rough. The same goes for the phone holder part itself. If you add too much support material here, the side flaps holding the phone in place, might brake off when trying to remove the support material.</p>
