PingBoard

prusaprinters

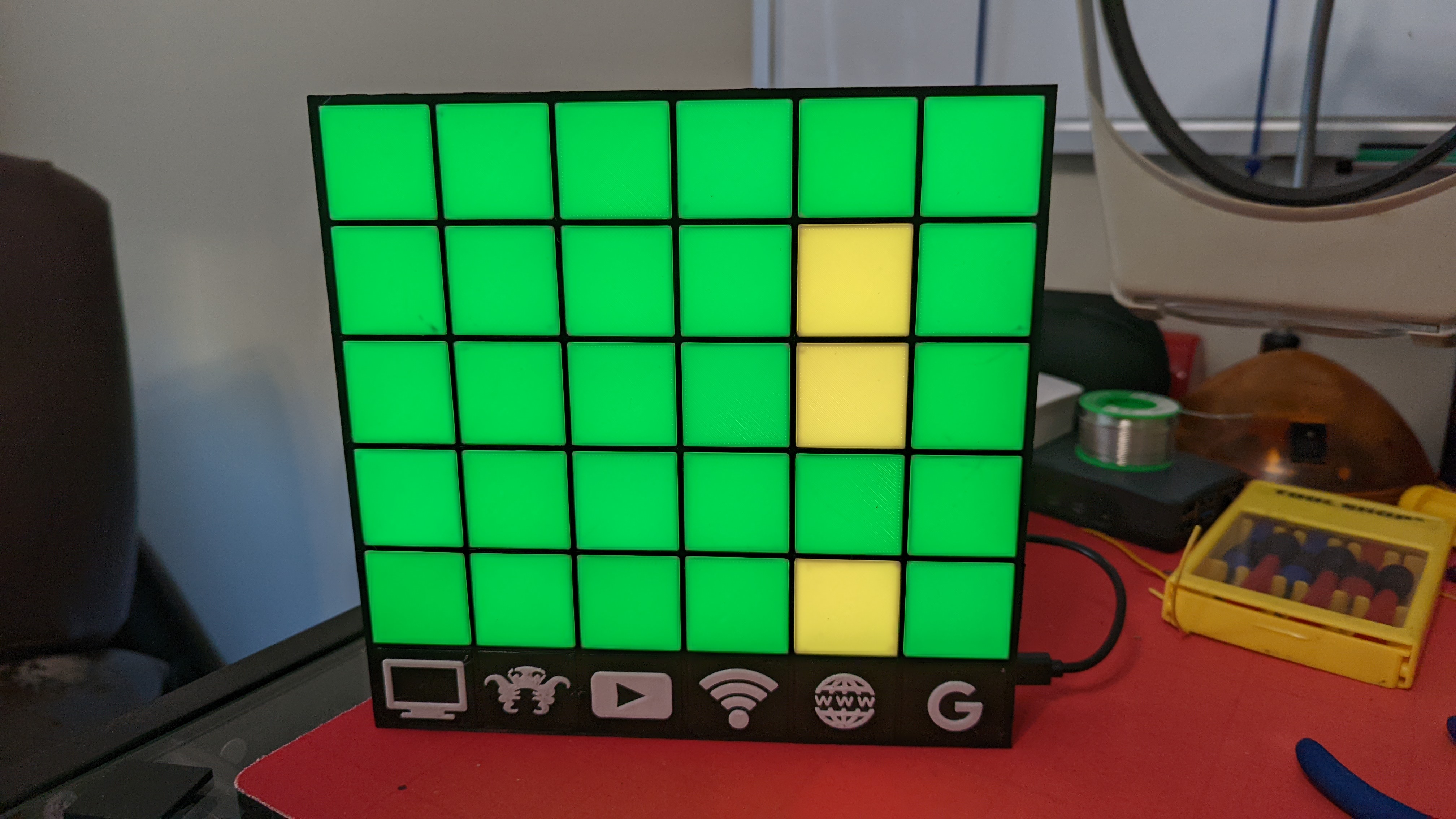

<p>I wanted a way to easily check the connectivity of nodes on my network and the connection to the internet, so I created a network pinging device that pings nodes and show their latency. Each node's IP and corresponding thresholds are set in a txt file and loaded on an SD card.</p><p>Body is printed in Black Prusament PETG</p><p>Lenses are printed in White Prusament PETG</p><p>Parts needed:</p><ul><li>Multi color wire</li><li><a href="https://www.adafruit.com/product/2824?length=1">1 Meter - 30/Meter Adafruit NeoPixel strand</a></li><li><a href="https://www.sparkfun.com/products/15589">1 Arduino Nano 33 IoT</a></li><li><a href="https://www.adafruit.com/product/4682">1 Adafruit SD Card Reader</a></li></ul><p>Files:</p><ul><li>Settings.txt - this is altered for your network and saved to the SD Card.</li><li>PingBoard.ino - Main program</li><li>Indicator.h.txt - Rename to Indicator.h. I cannot load “.h” files but it's need to address the columns as one.</li></ul><p>I hooked up the SD Card detect pin but didn't code for it.</p>
