Pin Channel

Pin Channel

grabcad

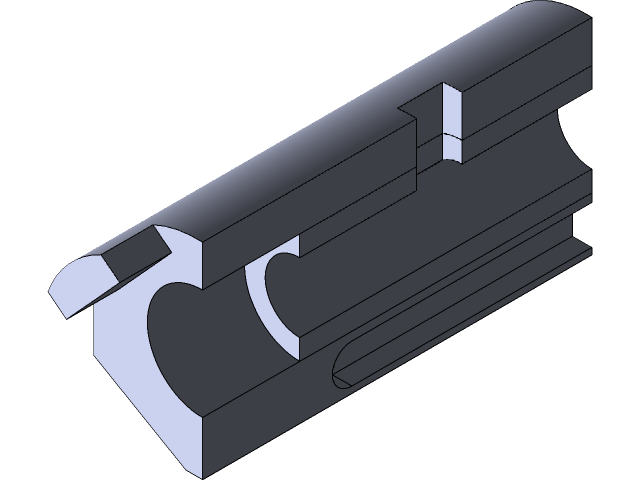

I made the 2-D sketch of the figure then extruded the figure to 200, then separate extrude the rectangle 75 mm off the model. I then moved onto the middle of the figure and drew, measured then cut a rectangle, Lastly I moved to the bottom of the figure and drew and cut another rectangle but this time I filleted the corners 15mm.

Download Model from grabcad

With this file you will be able to print Pin Channel with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on Pin Channel.
