PCB vice clone
prusaprinters

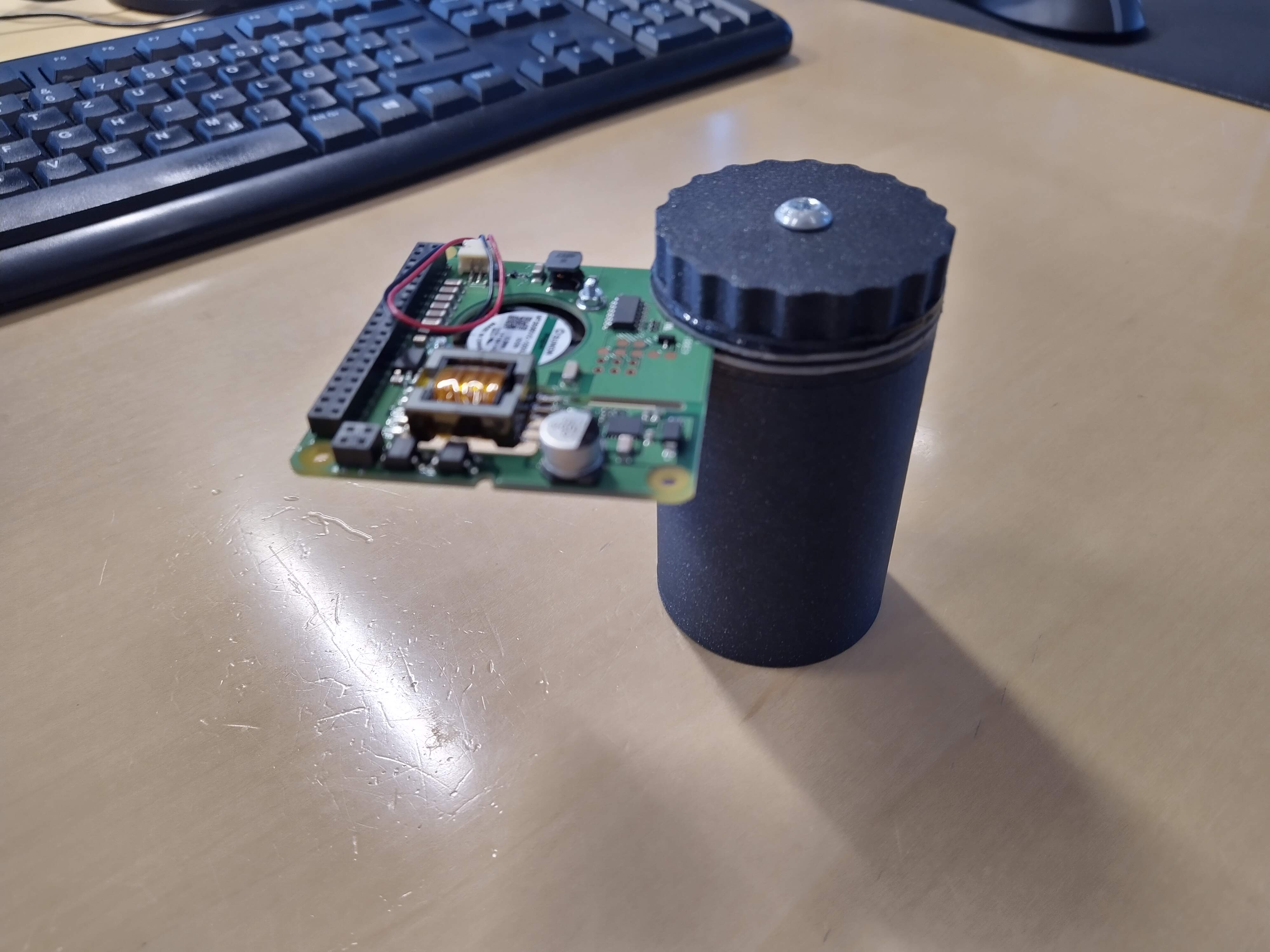

<p>This is a clamp that works similarly to the Hakko Omnivice.</p><p>Assembly instruction:</p><ol><li>Print all four parts.<br>When printing the base, add a pause before the hole in the center gets covered. Insert a long threaded stud (M5 x 20 mm).</li><li>Fill the base with something heavy (plaster, screws, sand, epoxy, …).</li><li>Glue the lid on the base.</li><li>Take the washer part and on one side glue some non slip rubber on (e.g. ESD matt, …).</li><li>Take the washer and clamp part and put a M5x40mm screw through both parts. Secure the clamp part tightly with a M5 hex nut. Put the nut into the hex shaped recess in the clamp part. The non slip surface of the washer has to point outwards! Thread a thin M5 nut on the screw until there is a gap of 2-3mm between the washer and the clamp part. Secure the nut with a drop of threadlocker.</li><li>Screw the clamping assembly into the base.</li></ol>
