Parametric cable surface mount screw holder
prusaprinters

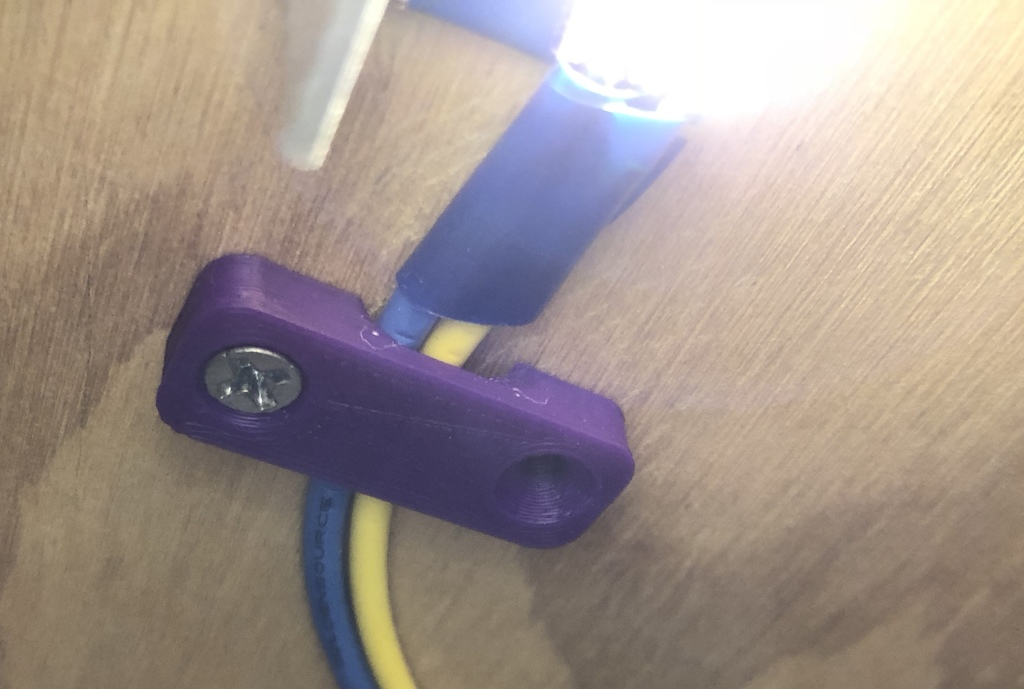

<p>A parametric cable guide/holder, with countersunk screw holes to securely attach cables to a (wood or similar) surface.</p><p>The included STL file is generated with the default settings in the SCAD file. All dimensions are in millimetres (mm).</p><p><i>Note: This Thing includes my RoundedRect.scad module file. Simply place this file in the same directory as Cable surface holder v1.scad for the import to work.</i></p><p>Every part of the model is parametric:</p><p><i>CableCutW</i>: Width of the cutout section, including rounded corners</p><p><i>CableCutDi</i>: Diameter of corners in cable cutout section.</p><p><i>HolderMinH</i>: Height of thin part of holder, over cable cutout.</p><p><i>HolderW</i>: Width of short edge of cable holder (length is calculated).</p><p><i>HolderH</i>: Height of full holder. The height of the cable cutout is HolderH - HolderMinH. </p><p><i>ScrewDi</i>: Diameter of main part of screw hole.</p><p><i>ScrewCountersinkDi</i>: Diameter of widest part of screw head to countersink. The countersink is automatically created to be a 45º angle cone.</p><p> </p>
