Parametric Bottle Holders - IKEA SKADIS version

prusaprinters

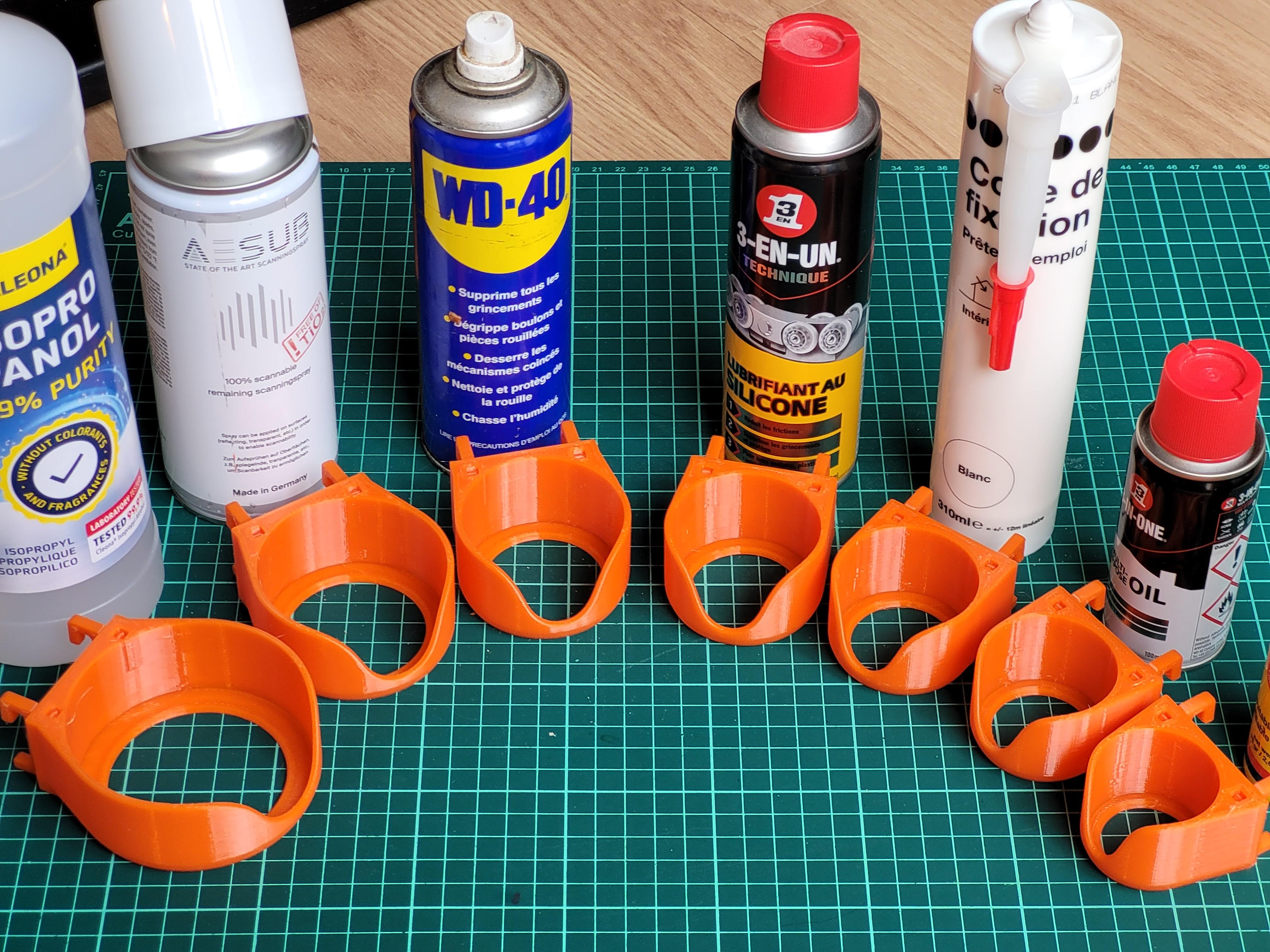

<p>I remixed my previous bottle holder to make it compatible with the <strong>IKEA SKADIS</strong> system.</p><p>Here are the variations I have printed &amp; installed so far:</p><figure class="table"><table><thead><tr><th><strong>Bottle Diameter</strong></th><th><strong>SKADIS Holder Diameter</strong></th><th><strong>Example</strong></th></tr></thead><tbody><tr><td>D 40.00 mm</td><td>D 40.50 mm</td><td>Clipper Lighter gas</td></tr><tr><td>D 45.20 mm</td><td>D 45.70 mm</td><td>OIL 100ml</td></tr><tr><td>D 49.00 mm</td><td>D 49.50 mm</td><td>silicone/glue cartridge…</td></tr><tr><td>D 53.00 mm</td><td>D 53.50 mm</td><td>WD40, Grease spray 200ml/250ml&nbsp;</td></tr><tr><td>D 57.75 mm</td><td>D 58.25 mm</td><td>WD40 300ml…</td></tr><tr><td>D 66.20 mm</td><td>D 66.50 mm</td><td>Standard BEER/SODA CAN 330ml<br>Standard Spray Paint 400ml…</td></tr><tr><td>D 80.00 mm</td><td>D 80.50 mm</td><td>Isopropanol 1000 ml</td></tr></tbody></table></figure><p>On the design:</p><ul><li>Holder diameter is 0.5mm higher than bottle diameter for perfect/easy fit.</li></ul><p>On the Freecad file:</p><ul><li>Display Spreadsheet</li><li>Modify cell highlighted in the screenshot</li><li>Do not add the 0.5mm gap, the spreadsheet calculates it on its own (space cell)</li><li>If model can't generate, delete last chamfer/filet (topology bug)</li></ul><p>If you can't work on the Freecad file, I'll be happy to add a variations to that list.</p><p>Hope it helps !</p><p>&nbsp;</p><p>For <strong>cylindrical </strong>bottle <strong>IKEA IVAR</strong> <strong>holder</strong>, have a look at my previous model: <a href="https://www.printables.com/model/259673-parametric-bottle-holders">https://www.printables.com/model/259673-parametric-bottle-holders</a></p><p>For <strong>rectangular</strong> bottle <strong>IKEA IVAR</strong> <strong>holder</strong>, have a look at my more recent parametric remix:<a href="https://www.printables.com/model/271053-parametric-rectangular-bottle-holders"> &nbsp;https://www.printables.com/model/271053-parametric-rectangular-bottle-holders</a></p>
