Parametric belt holder

prusaprinters

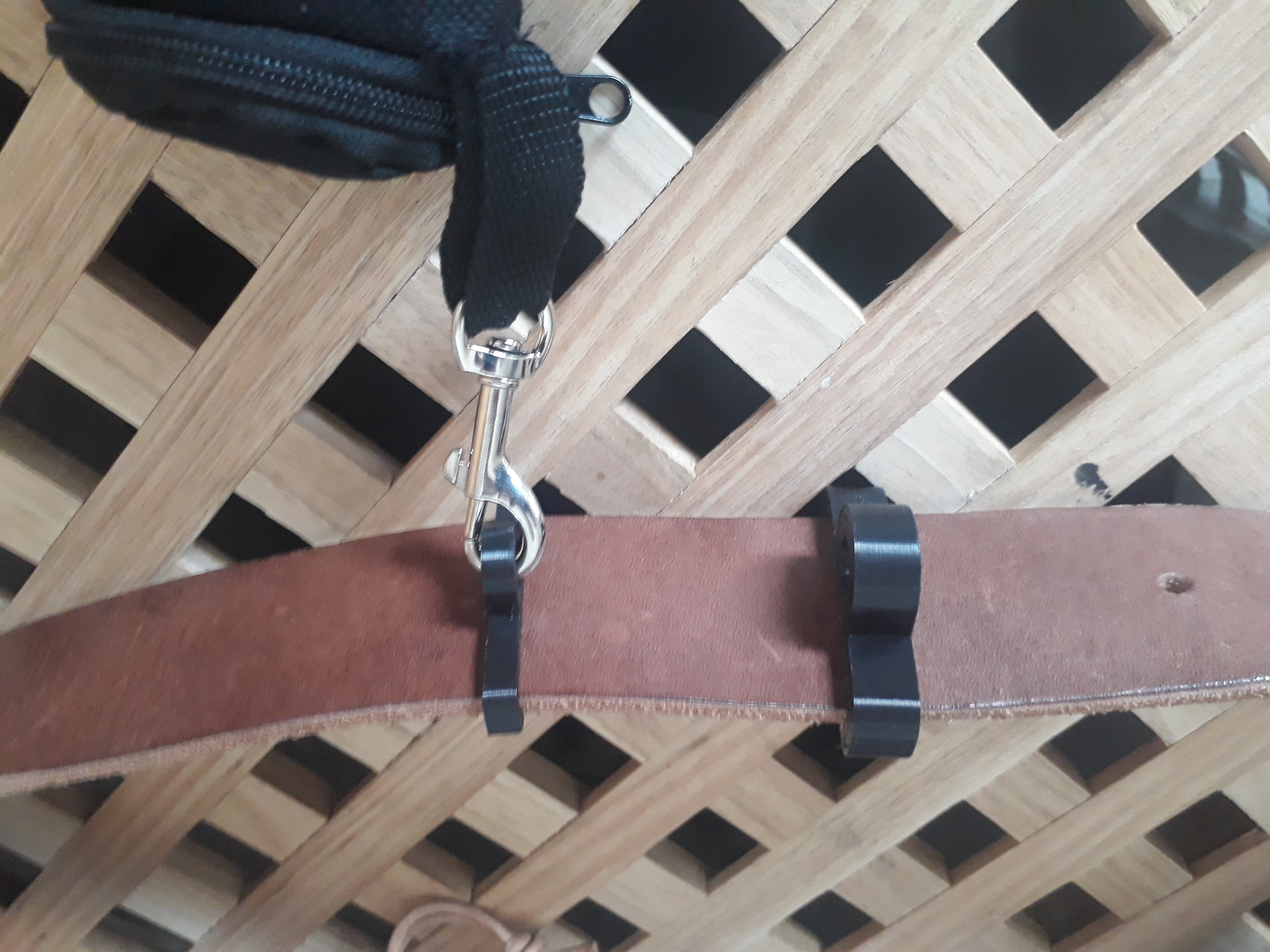

<p>A parametric belt holder to add eyelets in different strengths and sizes to a belt. I use the slim version for a litter bag dispenser and the strong version for a dog leash.</p><p>I printed mine in Extrudr Flex semisoft to give the dog leash holder extra tear strength, but PLA or PETG should be fine as well.</p><p>The provided OpenSCAD file allows full customization:</p><ul><li>belt dimensions</li><li>width</li><li>eyelet diameter</li><li>wall strength</li><li>eyelet position</li></ul><p>&nbsp;</p><p>The provided stl and presliced gcode files provide the following dimensions:</p><p>slim:</p><ul><li>belt dimensions: 41 mm x 4 mm</li><li>width: 5 mm</li><li>eyelet diameter: 10 mm</li><li>wall strength: 3 mm</li><li>hole position: centered</li></ul><p>strong:</p><ul><li>belt dimensions: 41 mm x 4 mm</li><li>width: 10 mm</li><li>eyelet diameter: 10 mm</li><li>wall strength: 5 mm</li><li>hole position: centered</li></ul><p>&nbsp;</p><p>The gcode is mainly provided for the time estimate, I highly suggest you customize and slice the file specifically for your own printer.</p>
