Nissan X-trail T30 4x4 gearbox oil stick

prusaprinters

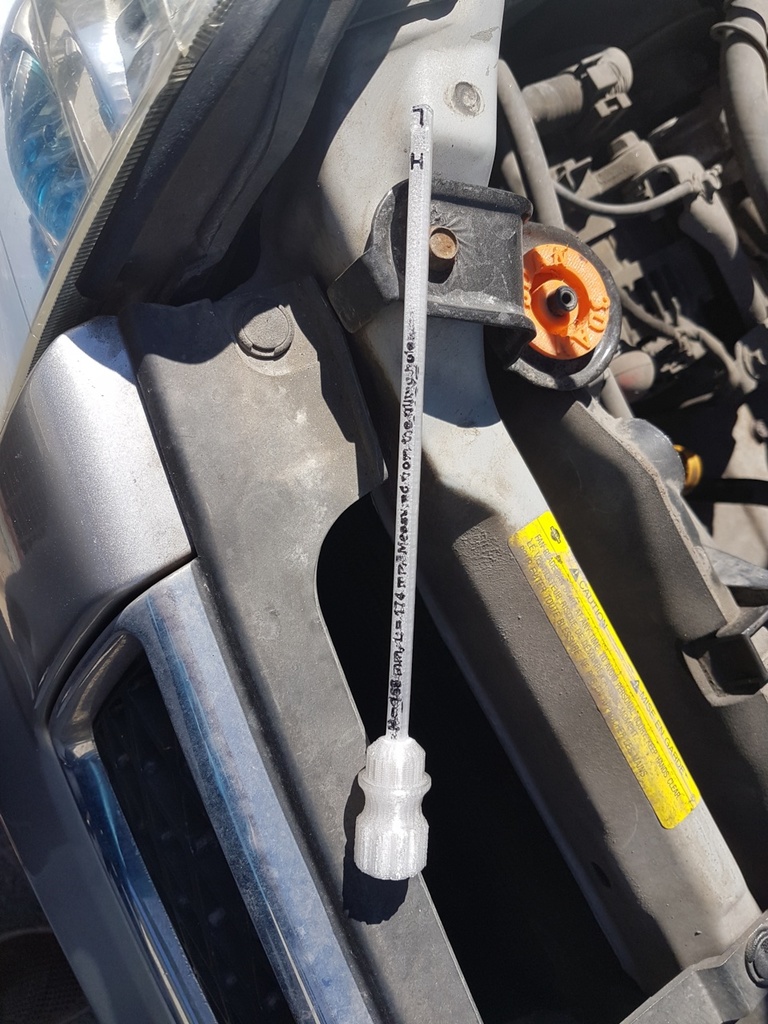

<p>This is an oil stick for X-trail T30 4x4 gearbox (2.0 l petrol, QR20DE). The service manual says "measure with appropriate stick". I found it hard to first dip a stick and then measure it so I made this.The H-notch is at 168 mm deep and L is at 174 mm, as the manual states.</p> <p>This works only for 4x4 models! 2WD has a different filling hole.</p> <p>Usage instructions:</p> <ul> <li>Remove the oil filling cap. It is a 10 mm hexagon screw</li> <li>Push the dipstick as deep as it goes</li> <li>Take it out and read the result<h3>Print Settings</h3> </li> </ul> <p><strong>Printer Brand:</strong></p> <p>FlashForge</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>Creator Pro</p></div><strong>Rafts:</strong></p> <p>Doesn't Matter</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div><strong>Resolution:</strong></p> <p>0,3</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>40</p></div><br/> <strong>Filament:</strong><br/> PETG PETG Transparent <br/> <p class="detail-setting notes"><strong>Notes: </strong> </p><div><p>Use whatever plastic that does not shrink(!) you have. I used PETG because it was loaded in my printer.</p> Transparent was a bad color choice because it is hard to see the oil on the stick (oil should be yellowish, not black)</div></p> <p>As said above, do not use a shrinking material except if you compensate for the shrinking.</p> <h3> Post-Printing</h3> <p>Glue together the two parts with your favorite glue. I used gel like superglue.</p> <p>You need to measure the correct distance as in the attached picture! I left some extra space in the top part because of printing errors, so if you push the stick all the way to the bottom the distance will be wrong.</p> <h3> How I Designed This</h3> <p>Designed in Fusion360 and sliced with Simplify3D</p> </p></p></p> Category: Automotive
