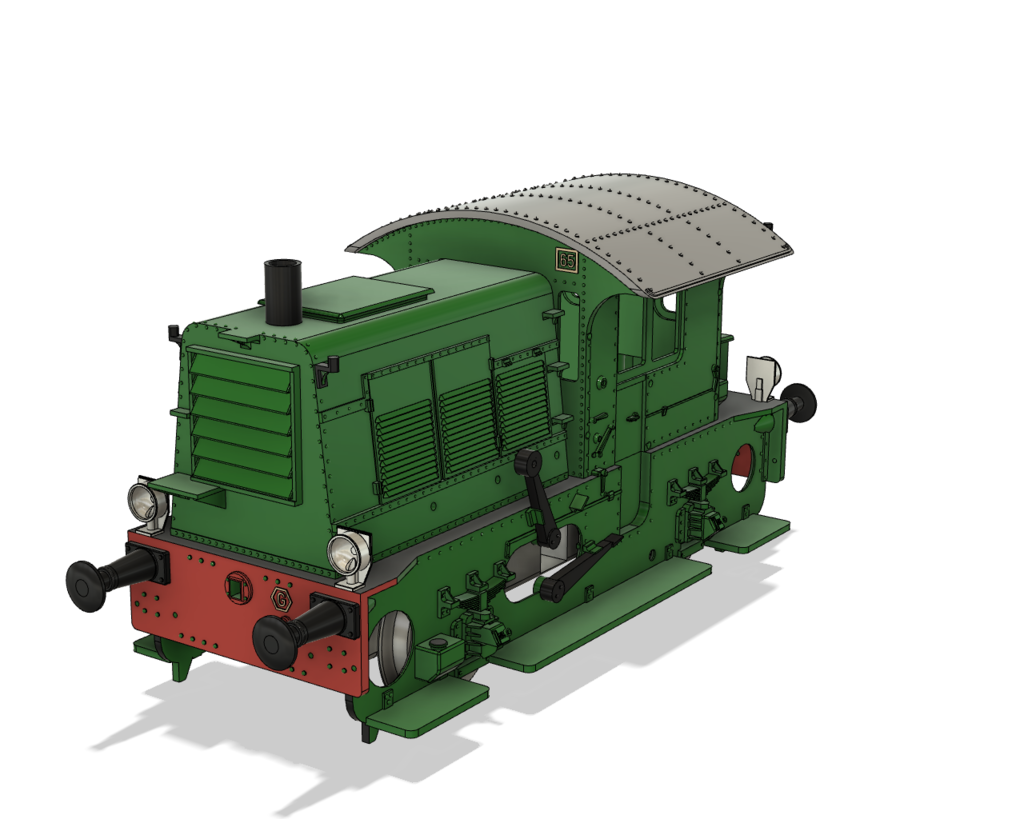

Nederlandse Spoorwegen Locomotor #362 - Serie 200-300 - SIK - Spoor 1 / 1:32

prusaprinters

<p>After finalizing the DB KÖF-II locomotive succesfully (https://www.printables.com/model/181942-db-kof-ii-gauge-1-132-45-mm), I challenged myself to design the Dutch alternative to this German shunter.</p><p>This is the series 200-300 of the Nederlandse Spoorwegen, nicknamed "SIK".</p><p>(<a href="https://nl.wikipedia.org/wiki/Sik_(locomotor)#Serie_201-369">https://nl.wikipedia.org/wiki/Sik_(locomotor)#Serie_201-369</a>)</p><p>Locomotor#362 is preserved. It's in the collection of NSM (Dutch Railway Museum), still with the crane fitted. <a href="https://www.spoorwegmuseum.nl/ontdek/de-collectie/onze-treinen/ns362-sik/">https://www.spoorwegmuseum.nl/ontdek/de-collectie/onze-treinen/ns362-sik/</a></p><p>The initial drive-unit (uploaded in this "Thing") is not powerfull, nor fast, and the exposed gears pick up debris too easily. My new designed motor-block is uploaded separately: <a href="https://www.printables.com/model/181867-motor-unit-for-nederlandse-spoorwegen-locomotor-36">https://www.printables.com/model/181867-motor-unit-for-nederlandse-spoorwegen-locomotor-36</a></p><p>Under the engine cover and in the cabin you have plenty of space to mount an RC receiver, sound-module, battery, ESC-module, etc.....</p><p>The chimney is constructed by glueing a piece of 8 mm pipe in the engine cover. (height over engine cover: 13 mm)</p><p>The roof is a simple lid/cover on the cabin.</p><p>The foot- and hand-levers are glued to the frame using 1.75 filament. A piece of metal wire is fitted as a handle in the top of the hand-levers.</p><p>If you want to create this model in the old green, black and red livery, the provided number- and factory sign are to be glued to the cabin. The numbers were simply painted on for the more recent yellow and grey locomotives.</p><p>The front- and rear holders for the "end of train" signs are probably too fragile to last a reasonable time. I've never printed and fitted them.</p><p>The body is screwed to the frame by M3 screws. The buffers are glued to the frame aligned by 4 mm rod/thread. The mounted brake tubes and couplings are standard items by Marklin or Hubner. In the buffer beam 1.5 mm holes are provided to create shunting hand-grabs using some metal wire.</p><p>I used available fixtures (M2 thread) and brass wire create hand rails.</p><p>&nbsp;</p><figure class="media"><oembed url="https://youtu.be/KW7nvZoBJ9E"></oembed></figure><p>&nbsp;</p><p>Good luck printing this lovely, typically Dutch locomotive!</p><h3>Print Settings</h3><p><strong>Printer Brand:</strong></p><p>Creality</p><p><strong>Printer:&nbsp;</strong></p><p>CR-10</p><p><strong>Rafts:</strong></p><p>No</p><p><strong>Supports:&nbsp;</strong></p><p>Yes</p><p><strong>Resolution:</strong></p><p>0.125 mm</p><p><strong>Infill:&nbsp;</strong></p><p>15%</p><p><strong>Filament:</strong> REAL Filament PC-PETG Black</p><p>&nbsp;</p>
