MT07/FZ07 MRA windshield regulator (until 2017, no 2018+)

cults3d

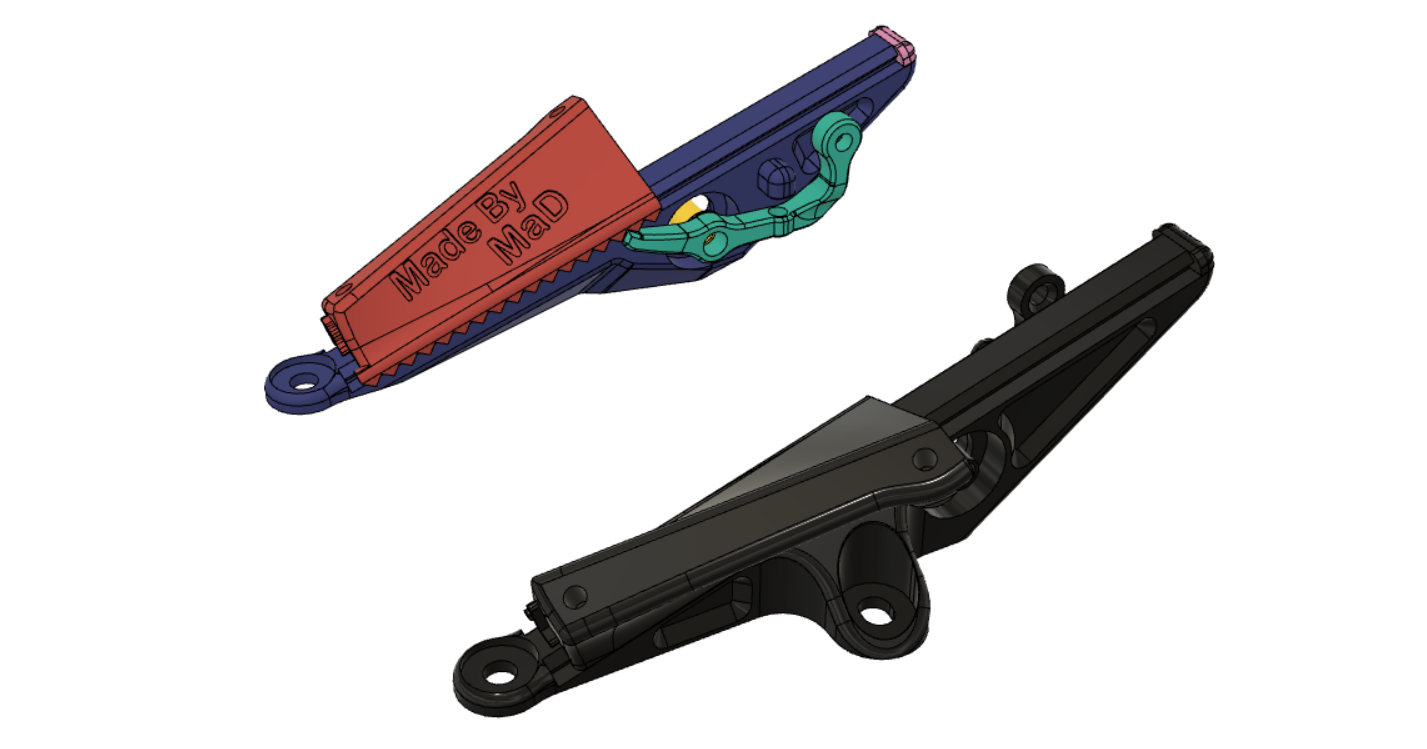

A regulator to raise the MRA screen on the 2014 to 2017 Mt/fz07. will allow to raise the screen 8cm for better wind protection and to lower it and retain the stock look.Will Will extended with two hands, lock in place and work just like it was 8 cm longer and it's possible to lower it just like it was raised or just pushing in the screen (for safety was designed to be quickly lower and to be impossible to raise during a fast acceleration or by mistake) You will need: -4 skateboard bearings -2 m6x30mm (1.0 pitch) and locking nuts -4 m4x10mm and washers for the screen -2 m3x15(or less) for the stops -50/60mm, around 6mm diameter of hollow aluminum rod (this is the "handle" you will press to unlock the screen - 2 wood screw or any countersunk screw that will thread inside the aluminum rod - 2 reasonable 4/5mm diameter springs the last 3 are the tricky ones a little lubricant on the slides will make the action perfect PLEASE mind the fact that a piece not printed strong enough will brake and that's not a fun time . PRINT IN IN PETG OR BETTER WITH A LOT OF PLASTIC ( do not spare any infill or number of walls roofs ecc more in better)
