Mounting aid SK40
prusaprinters

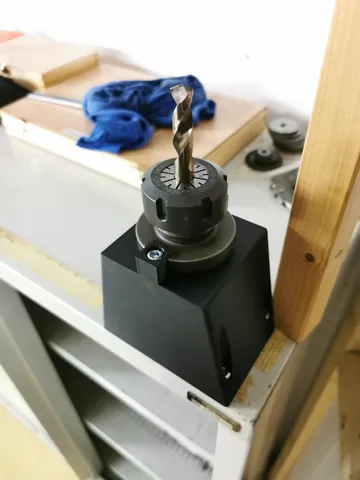

Mounting aid for cutter holders with a SK40 cone. The mounting aid holds the tool holder firmly and securely while the tool can be fixed in the holder.Version v0-1 is without reinforcement in the "sliding blocks" and version v0-2 is with reinforcement. The reinforcement against shear forces is an M6 screw, which can be up to 40mm long. For the screw I first pre-cut a thread.Version v0-1 broke once, so I designed and printed version v0-2 with 100% infill, since then I had no problems.Drawn with FreeCAD, original files available.
