Monitor opening tool for IBM 14L10/15L10 (Aptiva)
prusaprinters

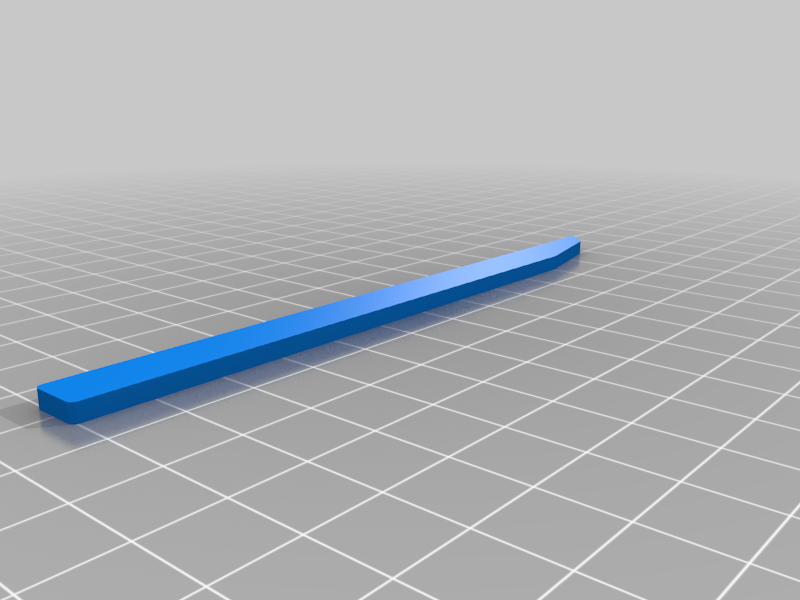

<p>Small tool designed to open the internal case clips on IBM 14L10/15L10 (Aptiva) and similar Monitors.<br>These clips can only be reached through a small vertical opening (see image1). Just insert the tool through these openings, making sure the tip is aligned like shown in image 2, then push the tool forward, which unclips the two halves of the case (see image3). A single tool is enough to open both sides after each other, but you can print two and unhook both sides simultaneously.</p><p>Tested on IBM 14L10 / 6322 - R32 (PN 95G9979) Monitor, but should work for 15L10 and similar designs, too.</p>
