Modular wall-mounted organizer

prusaprinters

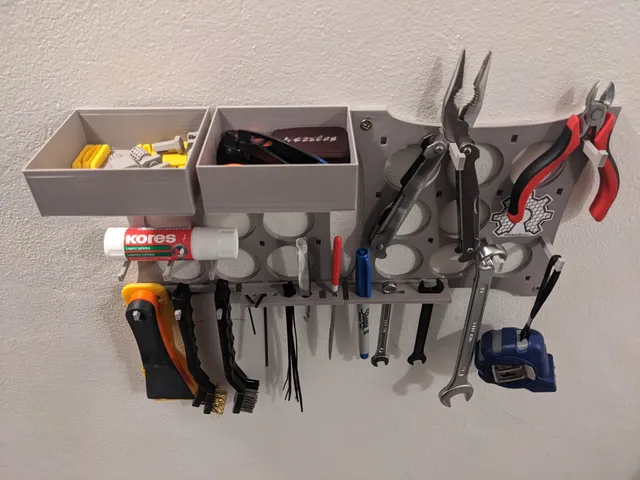

IntroductionThis is a fully customizable modular wall-mounted system for organizing and hanging all tools and small items you need. You can print any number of backplates and attach them to each other. Then choose hooks, desks, or boxes and put them in a backplate. A basic set of modules is included in parametric models so you can easily customize or design your own. Backplate I designed the backplate to be as light and robust enough as possible to keep things hanging. The design allows you to place any number of plates next to each other and on top of each other. It uses the entire area of the Prusa MINI heatbed. PrintingI printed it in PETG. It took 3,5 hours with a 10% infill and the weight after printing is about 45g. InstallationI used standard 4 x 45 mm brass screws and 8 mm nylon dowels for wall mounting.When mounting the boards side by side, it is advisable to use a connecting module for precise positioning. ModulesI designed a basic set of hooks, boards with holes, and a box. They all fit on one heatbed. Just remove or add modules according to your needs. Fusion 360 parametric models are included so you can easily customize them. Modules are printed with 4 perimeters to ensure stiffness.  EconomyAnd in the end, is it worth it at all? Well, there are several systems on the market that can do the same thing from simple hobbies to professional solutions. The undeniable advantage of this solution is absolute control over the number and design of modules. My presented configuration consumed less than 200 g of filament, which represents about 8 € in costs, including energy. For a solution with 1-4 backplates, it's quite ok. If you need more, it probably doesn't make sense to print a lot of small backplates, but it's better to buy a board and customize only the hooks and modules.I hope you enjoy the system and look forward to your configurations and new modules.
