Modular Organiser for Flyers

prusaprinters

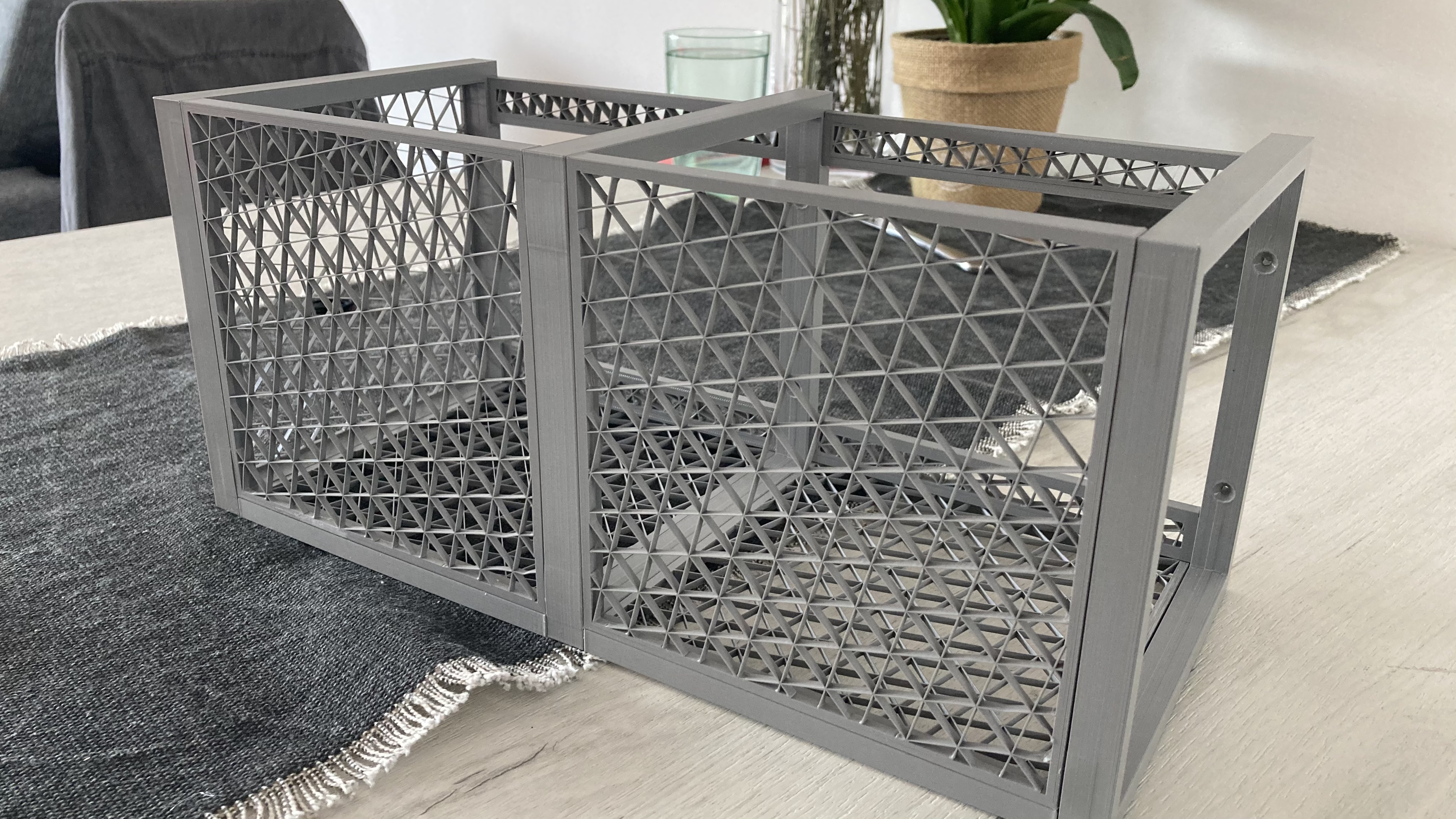

<p>Give a flyer the second chance!<br/> Unwanted flyer can be stored in this organiser to be reused later.<br/> Advantage of this design is that it can be used for example under the kichen desk or in wardrobe.</p> <p>Of course this print can be used in totally diferent way and i would be happy to see other solutions :-)</p> <h3>Print instructions</h3><p><b>Design settings</b></p> <p>For this project I used PrusaSlicer Modifiers which created pattern from photo. This pattern is actually a triangle infill with bottom and upper layers set to 0.</p> <p>I've uploaded .3mf files where you can create your own design.<br/> It is super easy :-)<br/> In PrusaSlicer (Advanced and Expert mode) just set infill pattern and infill density to create a personalised design.<br/> (note: Not every infill pattern is suitable for this organiser eg. concentric)</p> <p>For more info learn from <a href="https://www.youtube.com/watch?v=6PVeh43Or-g&amp;ab_channel=Prusa3DbyJosefPrusa">this video</a> made by Jo Prusa.</p> <p><b>Print settings</b></p> <p>Material: PLA, PETG, etc<br/> Layer height: 0.2<br/> Supports: Yes (only for bottom and side panel)<br/> Overall infill: 7%<br/> Brim: not needeed</p> <p><b>Printing Plan</b></p> <p>For one section organiser you need to print:<br/> 2x Frames (Front Frame, Rear Frame),<br/> 1x Side Panel<br/> 1x Bottom Panel<br/> 2x Brace.</p> <p>For two or more section you need just to multiply above mentioned parts by number of sections except frames files. You allways need Front and Rear. Two section organiser require - 1x Middle frame, three sections - 2x Middle frame etc.</p>
