Mob4us Mobius2 adaptor for Anycubic 4max and 2020 profile with integrated damping

prusaprinters

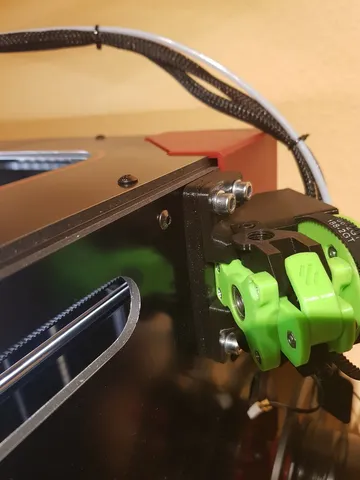

this is an adaptor for the mobius2 extruder from the Voron-Project (https://github.com/mzbotreprap/VORON) adapting to the Anycubic 4Max it fits to the original mounting holes from the filament sensor you can use 1 of 2 options: Version A Print "mob4us-body" in TPU, push the Nuts in and mount everything BOM Variant A: 2x M4 Nut 2x M4x12 (allen)screw 2x M4 washer 4x M5 Nut 4x M5x12 (allen)screw 4x M5 washer 1x mob4us-body (TPU) Version B Print "mobus-body" in PETG or ABS Print "mob4us-damper" in TPU push the Nuts in and mount everything BOM Variant B: 2x M4 Nut 2x M4x12 (allen)screw 2x M4 washer 4x M5 Nut 4x M5x14 (allen)screw 4x M5 washer 1x mob4us-body (PETG/ABS) 1x mob4us-damper (TPU) i prefer for Variant A a harder TPU, printed with higher infill and more walls to get it stable for variant B i prefer a softer TPU for the damper PS: i will Post a picture when i have all my parts for the rework the Pictures show Variant A (Sorry for the bad print, its my first try with TPU) The Adaptor fits to the printer and the extruder Update: Mob4us-2020 edition This version fits with M4 screws instead of the Hex-Nuts to mount the mob4us-2020 to any printer with 2020 frame with vertical direction Update2: Added one Version to mount the system through the sidepanel directly to the frame "Mob4us_profil" Category: 3D Printer Parts
