MK3s X-Axis Strain Relief/Cable Protection

prusaprinters

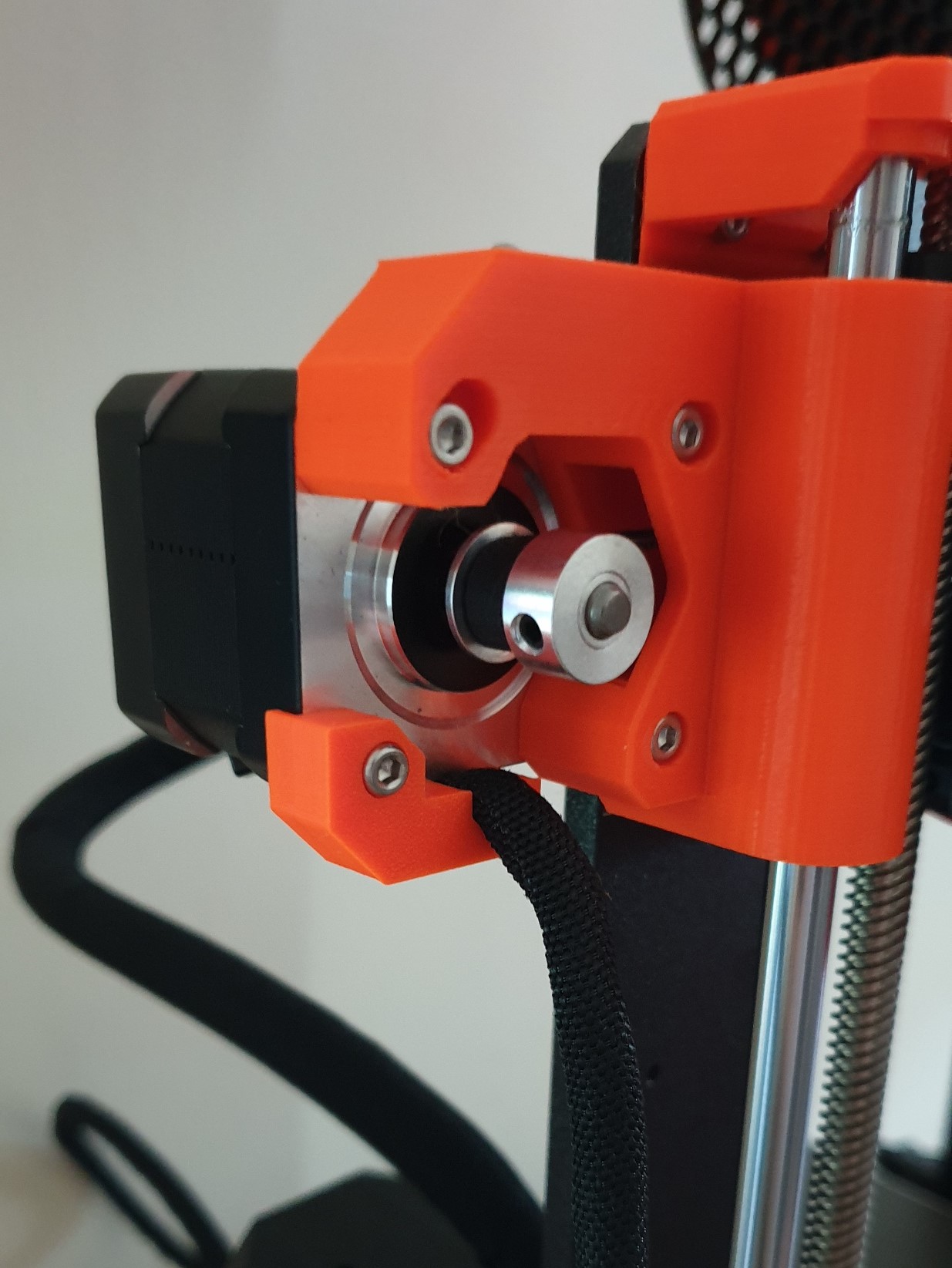

<p>Removes strain from the x-axis motor connector.</p> <p>As the z-axis does not make fast moves, there is very little strain in the x-axis wire. However, the standard setup bends about the stepper motor connector. This strain relief moves the bend along the wire so it can be better distributed along it's length. Added benefit of better constraining the path of the cable. The strain relief is attached with no modification to the original setup and uses a M3x10 bolt found in the spares bag supplied with the MK3S and does not require a cable tie.</p> <p>Well worth £0.05 and 25 mins printing.</p> <h3>Print instructions</h3><p>Tested:<br/> Prusament PETG/Generic PLA<br/> PrusaSlicer Default Settings<br/> 0.4mm nozzle<br/> 0.15mm Quality MK3<br/> 15% Honeycomb Infill</p> <p>Bolt recess may require cleaning up due to overhang but supports not required.</p> <p><b>Fit the part at maximum z height. Extra cable length can be <i> gently</i> pulled through from control box. </b></p>
