MK3s+ extruder motor and gear cooler
prusaprinters

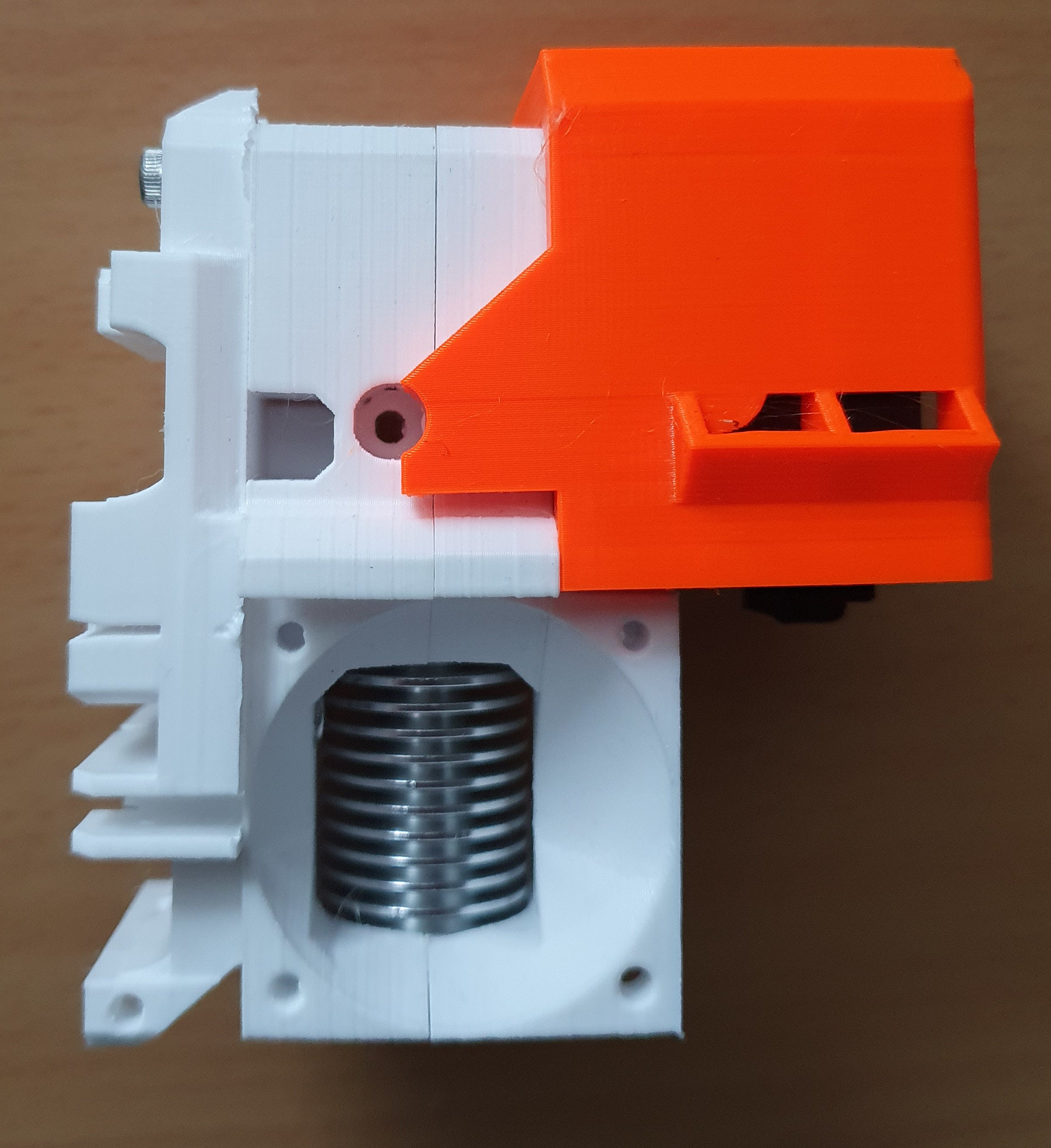

<p>I made a remix of a extruder motor cooler. This is for the new MK3s+ that has some airflow over the Bondtech gears.</p> <p>This one uses both openings on the left side of the extruder but doesn't block the tension screw for the Bondtech gears.</p> <p>I haven't tested it yet. But with the parts that I have printed I have checked that there is enough room to move freely.</p> <h3>Print instructions</h3><p>I printed this in PETG. PLA is to brittle to bend and install.</p> <p>0.2mm layer height and 15-20% infill.</p> <p>There is no need for supports. I added a little support in the print to support the part that fits next to the Bondtech tension screw.<br/> That support is easy to cut off.</p>
With this file you will be able to print MK3s+ extruder motor and gear cooler with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on MK3s+ extruder motor and gear cooler.
