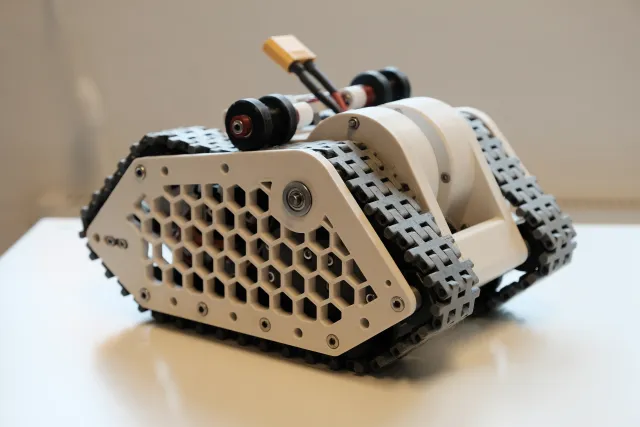

Mini Speedtank

prusaprinters

The tank has low torque and high grass should be avoided, but on soilid ground its really fun to drift around :D Feel free to modify or remix the tank, STEP and F3D Files are included. Building the tank sould be pretty easy, you can look into the STEP or F3D Files for viewing the complete assembly. The chain is conected using short pices of filament. I recommend PLA because it is stiff and doesn't deform that much. All parts can be printed in PLA, except the ones with “PETG” in their name. 4 perimeters and 30% infill should be used.Here are the mechanical parts you will need:14x 50mm M44x 35mm M42x 16mm M420x 35mm M330x 10mm M324x 8mm M320x M4 Locknuts74x M3 Locknuts2x 70mm hardened steel shaft 5m diameter32x MR128 ZZ bearing4X F605 bearing And here are the electronical parts Transmitter and Reciver with mixing function2x ESC with direct reverse function2x MN2213 Motor2S Lipo under 4000mAhBattery Strap
