Mediumshot - Waterblaster Conversion Kit

prusaprinters

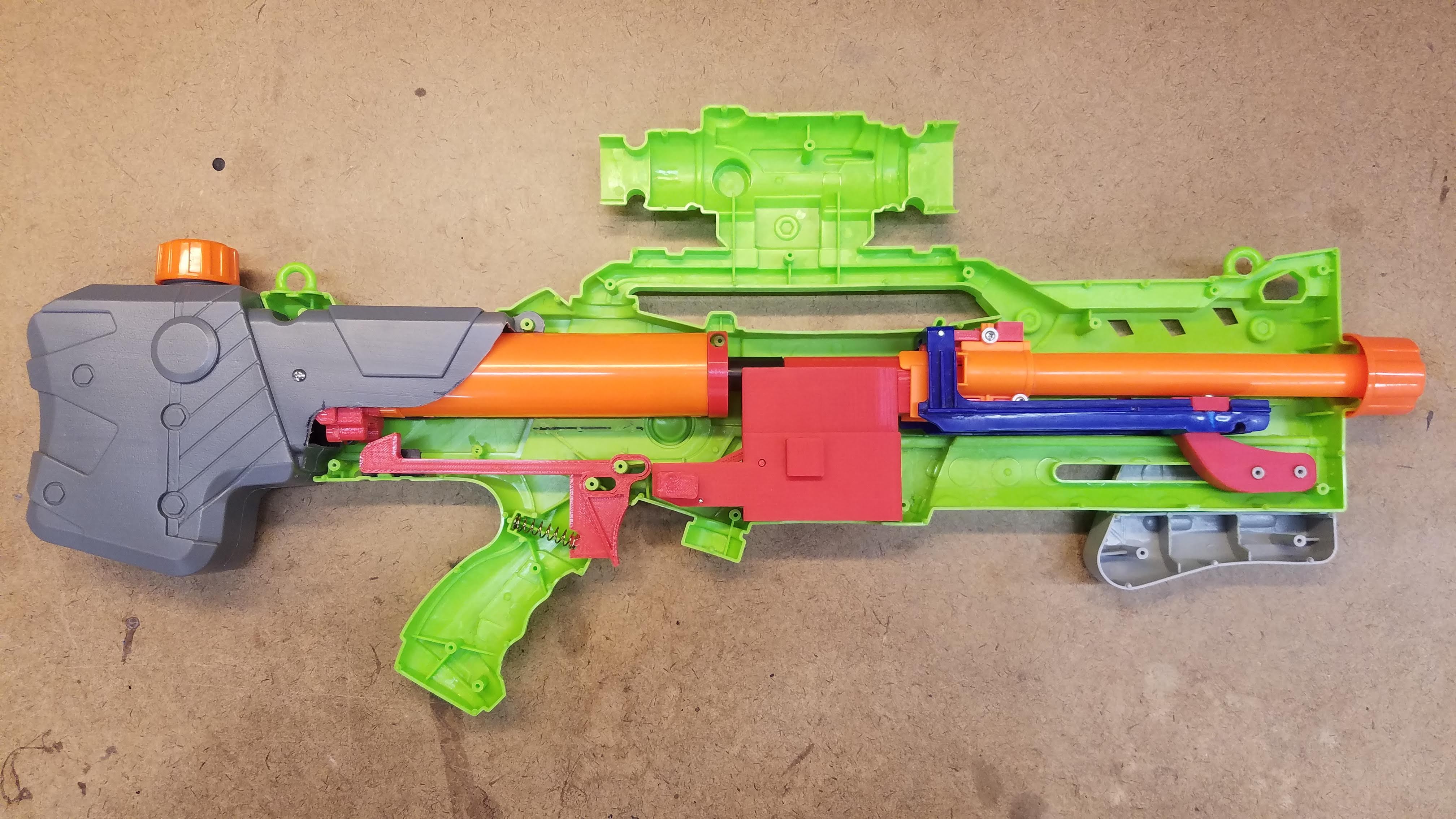

<p>These parts are designed to work in conjunction with select Nerf blaster parts to turn a cheap water blaster into a functioning, half-length dart shooting, Nerf blaster.</p> <p>The Nerf parts required to complete this mod are as follows:<br/> Nerf Longshot Boltsled &amp; Metal Pin (Boltsled must be trimmed at the bottom to work)<br/> Nerf Longshot Plunger Tube<br/> Nerf Longshot Plunger Rod<br/> Nerf Longshot Catch Plate<br/> Nerf Longshot Catch Spring<br/> Nerf Internal Barrel (available in many blasters)<br/> Nerf Raider Breech Acceptor</p> <p>A few of the parts have been designed with 4-40 screws in mind, and some have been designed for discarded Nerf size screws.<br/> In addition, 1 extension spring is needed for the Magazine/Clip Release, and an upgraded torsion spring is recommended for the Raider breech acceptor.</p> <p>Currently, the mag will is designed to accept both Katana and Talon mags, but the mag release currently is only set up to work with Katana mags. As soon as I get some Talon mags, I will update the design to be fully compatible with them.</p> <p>Here are pictures and a short write-up on the blaster:<a href="https://www.reddit.com/r/Nerf/comments/g7h4l3/mediumshot_20_water_blaster_longshot_conversion/">https://www.reddit.com/r/Nerf/comments/g7h4l3/mediumshot\_20\_water\_blaster\_longshot\_conversion/</a></p> <p>The mag well was designed in part by using some of the dimensions from Philip Sweeting's Katana Mag adapter and MeakerVI's "Wild card" V2 Katana/Talon Mag Adapter. My huge thanks to both of them.</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>MakerBot</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>MakerBot Replicator 2</p></div>**Rafts:** Yes <p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div>**Resolution:** 0.2 mm <p class="detail-setting infill"><strong>Infill: </strong> <div><p>20%</p></div> **Filament:** [ Makerbot PLA ](http://www.amazon.com/s?url=search-alias&amp;field-keywords=Makerbot+PLA&amp;tag=thingiverse09-20) Red Assembly Pictures ================= <p class="detail-caption"><strong>Left Side Assembled</strong></p> <p class="detail-image"><img src="https://cdn.thingiverse.com/assets/07/c8/f7/ab/7b/20200423\_215438.jpg"/></p> <p class="detail-caption"><strong>Exploded View</strong></p> <p class="detail-image"><img src="https://cdn.thingiverse.com/assets/d3/ab/90/54/48/20200423\_144505.jpg"/></p> <p class="detail-caption"><strong>Right Side Assembled </strong></p> <p class="detail-image"><img src="https://cdn.thingiverse.com/assets/2a/d6/2b/a3/73/20200423\_143158.jpg"/></p> <p class="detail-caption"><strong>Mag Well Assembly</strong></p> <p class="detail-image"><img src="https://cdn.thingiverse.com/assets/94/ef/c7/ae/94/20200423\_215922.jpg"/></p> <p class="detail-caption"><strong>Bolt Sled Assembly</strong></p> <p class="detail-image"><img src="https://cdn.thingiverse.com/assets/b3/af/5f/30/e5/20200423\_215935.jpg"/></p> <p class="detail-caption"><strong>Breech Assembly</strong></p></p></p></p> Category: Mechanical Toys
