Mean Well LRS-100-5 Power Supply Case

prusaprinters

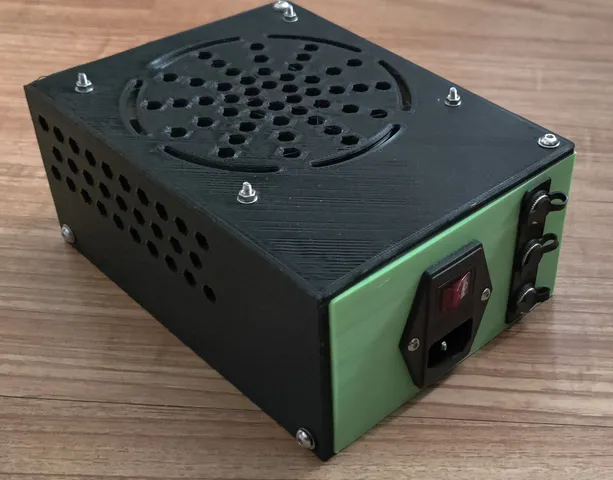

I created a power supply enclosure to house my Mean Well LRS-100-5 5VDC Power Supply.  The design concept was to create an enclosure that could connect externally to my Raspberry Pi 4 based 2 Person Arcade Flight Deck.  The enclosure includes an standard IEC 120VAC plug with switch.  I also added 3 standard 5.5mm barrel plugs to power up to three 5 volt devices.  In my case my Raspberry Pi 4, some LEDs and charge my phone.  I also added a 120mm 5volt cooling fan from Noctua which is pretty silent even at full speed.  Non-Printed PartsQty   -   Description   -  Price 3x -  5.5mm x 2.1mm Barrel Plugs - $10.99 (8 Pack) 1x  - Noctua 120mm x 25mm 5VDC Fan  22.4 dBa - $19.95 ea1x - Mean Well LRS-100-5 Power Supply - $20.25ea1x -  IEC 320  110VAC Plug with Switch Socket - $8.99eaAll Hardware can be found in this kit - $28.99 Required HardwareQty:                    Description                            3D Part Location4x     M4 x 16mm Button Head Screws   - Outer Cover4x     M4 Flat or Lock Washers                 - Outer Cover4x    M4 Hex Nuts                                      - Inserts into the Main Casing for outer Cover screws4x    M3 x  12mm   Button Head Screws - Fan Installation            4x     M3 Flat or Lock Washers                 - Fan4x    M3 Hex Nuts                                      - Fan 3x     M3 x 8mm  Button Head Screws  - Power Supply Mount3x     M3 Flat or Lock washers                -  Power Supply Mount 2x     M3 x 12mm Button Head Screw   -  IEC Plug Adapter      2x     M3 Flat or Lock Washers               -  IEC Plug Adapter 2x     M3 Hex Nut                                      -  IEC Plug Adapter
